► BENCH TYPE SPECIMEN CUTTING MACHINE

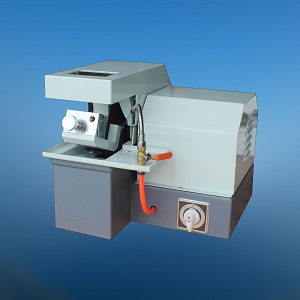

★ MODEL Q-2 METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 30mm ★ Cutting disc diameter 250 x 2 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used to cut various metal materials, as well as other non-metal materials such as plastic, rubber hose etc.

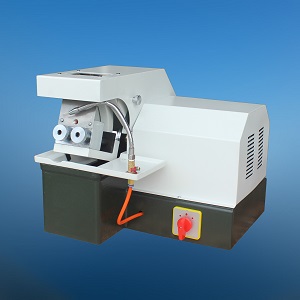

★ MODEL Q-2A METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 55mm ★ Cutting disc diameter 300 x 2 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used to cut various metal materials, as well as other non-metal materials such as plastic, rubber hose etc.

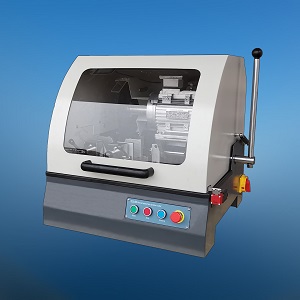

★ MODEL SQ-60 METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 60mm ★ Cutting disc diameter 250 x 2 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used for cutting of normal metallographic and lithofacies materials.
★ MODEL SQ-80 METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 80mm ★ Cutting disc diameter 250 x 2 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used for cutting of normal metallographic and lithofacies materials.
★ MODEL SQ-100 METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 100mm ★ Cutting disc diameter 300 x 2.5 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used for cutting of normal metallographic and lithofacies materials.

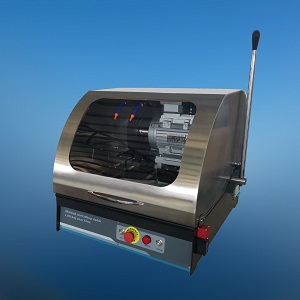

★ MODEL SQ-60A METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Stainless steel chamber cover ★ Max. cutting diameter Ø 60mm ★ Cutting disc diameter 250 x 2 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure.
★ MODEL SQ-80A METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Stainless steel chamber cover ★ Max. cutting diameter Ø 80mm ★ Cutting disc diameter 250 x 2 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure.
★ MODEL SQ-100A METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Stainless steel chamber cover ★ Max. cutting diameter Ø 100mm ★ Cutting disc diameter 300 x 2 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure.

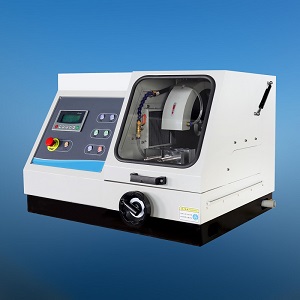

★ MODEL Q-80Z MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 80mm ★ Cutting disc diameter 350 x 2.5 x 32mm ★ Manual / Automatic cutting mode shiftable ★ Rotating speed: 2100 rpm ★ Power supply: 380V, three phases This manual / automatic cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure.

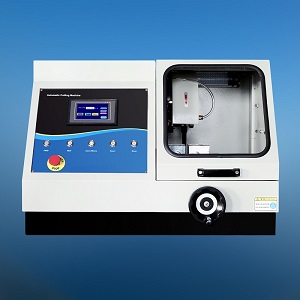

★ MODEL Q-100B MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 100mm ★ Cutting disc diameter 350 x 2.5 x 32mm ★ Manual / Automatic cutting mode shiftable ★ Rotating speed: 2100 rpm ★ Power supply: 380V, three phases This manual / automatic cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure.

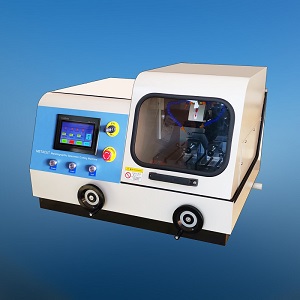

★ MODEL METACUT-80 MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 80mm ★ Cutting disc diameter 300 x 2 x 32mm ★ Manual / Automatic cutting mode shiftable ★ Rotating speed: 2300 rpm (or 600-2800 rpm stepless speed is optional) ★ Power supply: 380V, three phases This machine can be used for cutting all kinds of metal, non-metallic materials, samples so as to observe the material microstructure and lithofacies organization.
★ MODEL METACUT-100 MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 100mm ★ Cutting disc diameter 350 x 2.5 x 32mm ★ Manual / Automatic cutting mode shiftable ★ Rotating speed: 2300 rpm (or 600-2800 rpm stepless speed is optional) ★ Power supply: 380V, three phases This machine can be used for cutting all kinds of metal, non-metallic materials, samples so as to observe the material microstructure and lithofacies organization.

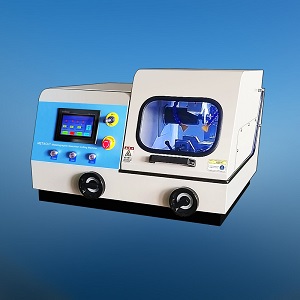

★ MODEL METACUT-120 MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Max. cutting diameter Ø 120mm ★ Cutting disc diameter 400 x 3 x 32mm ★ Manual / Automatic cutting mode shiftable ★ Rotating speed: 2100 rpm (or 600-2800 rpm stepless speed is optional) ★ Power supply: 380V, three phases This machine can be used for cutting all kinds of metal, non-metallic materials, samples so as to observe the material microstructure and lithofacies organization.

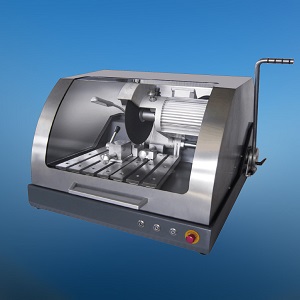

★ MODEL QIEGE-60S METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Stainless steel machine body and worktable ★ Max. cutting diameter Ø 60mm ★ Cutting disc diameter 250 x 2 x 32mm ★ Rotating speed: 2800 rpm ★ Power supply: 380V, three phases This machine can be used for cutting all kinds of metal, non-metallic materials, samples so as to observe the material microstructure and lithofacies organization.

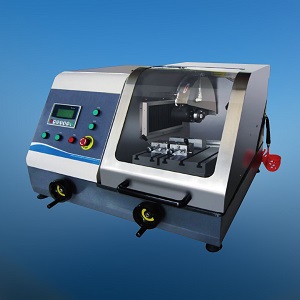

★ MODEL QIEGE-100S MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE ★
	★ Stainless steel machine body and worktable ★ Max. cutting diameter Ø 100mm ★ Cutting disc diameter 350 x 2.5 x 32mm ★ Rotating speed: 2200 rpm ★ Power supply: 380V, three phases This machine can be used for cutting all kinds of metal, non-metallic materials, samples so as to observe the material microstructure and lithofacies organization.
