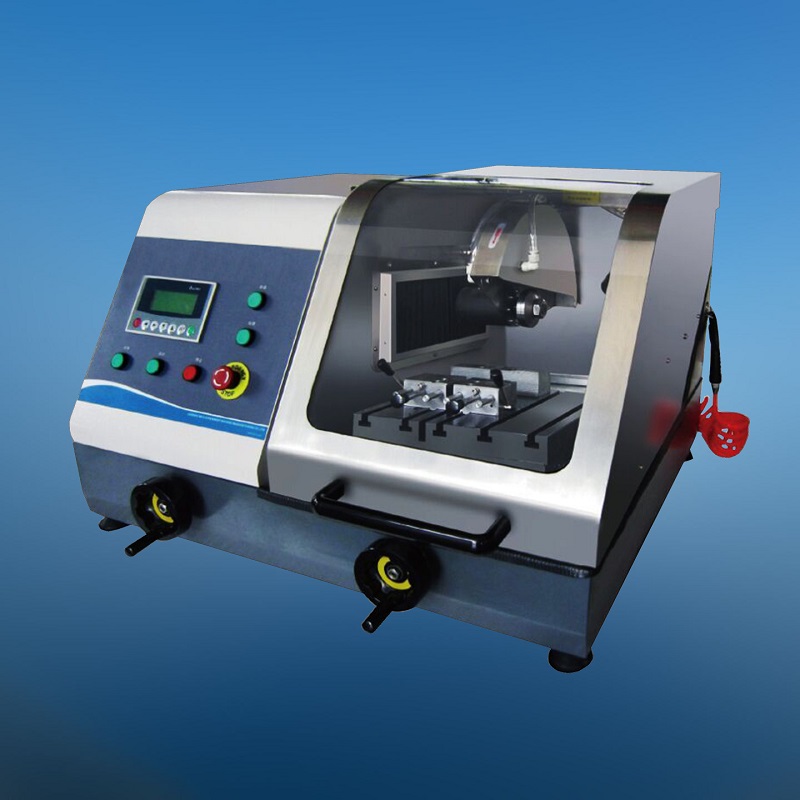

MODEL QIEGE-100S MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE
Model QIEGE-100S Manual / Automatic Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine has stainless machine body and worktable, and it features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
Technical specifications
Max. cutting diameter: Ø100mm Sand wheel specification: 350 x 2.5 x 32mm Rotating speed of main shaft: 2200 rpm Max. worktable movable distance: 300mm Max. movable travel for automatic cutting: 145mm Motor: 3.3 KW Power supply: 380V, 50Hz (three phases) Dimensions: 900 x 860 x 620mm Weight: approx. 272 KG
|
||||
