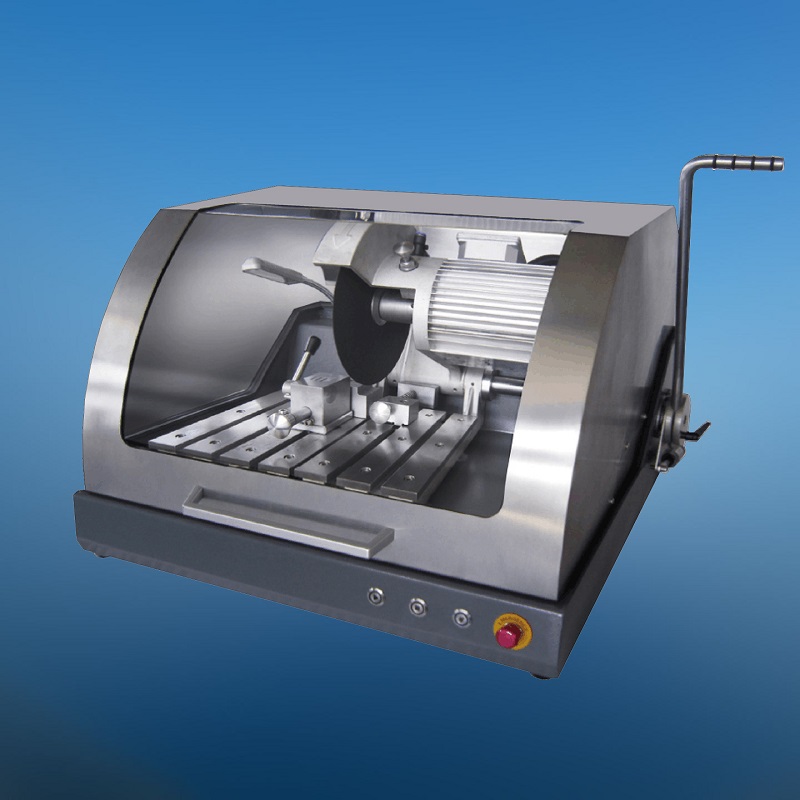

MODEL QIEGE-60S METALLOGRAPHIC SPECIMEN CUTTING MACHINE
Model QIEGE-60S Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine has stainless machine body and worktable, and it features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
Technical specifications
Max. cutting diameter: Ø60mm Sand wheel specification: 250 x 1.5 x 25.4 mm Rotating speed of main shaft: 2800 rpm Motor: 2.4KW Power supply: 380V, 50Hz (three phases) Dimensions: 750 x 620 x 450mm Weight: approx. 82kg
|
||||
