MODEL Q-80Z

MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE

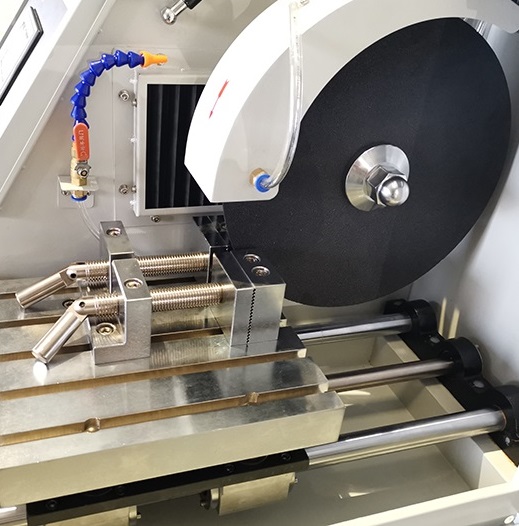

        Model Q-80Z manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Features

• The machine can preset the cutting speed according to different specimens, this will improve the cutting performance and quality of specimen.

• Recirculating cooling system can help to cool down the specimen during cutting process so as to avoid burning damage to the organization.

• The machine can be operated in manual cutting mode or automatic cutting mode.

• Various cutting data can be displayed on high definition touch screen type LCD.

• Delay cutting (for large and hard specimen) and continuous cutting (for small and soft specimen) can be selected.

• Automatic withdraw function after cutting is finished.

• Zero setting for cutting distance to clear empty travel.

• Equipped with large volume cooling liquid water tank.

Technical specifications

Max. Cutting diameter: Ø80mm

Max. Cutting volume: 80mm x 200mm

Main shaft rotating speed: 2100 rpm

Automatic cutting speed:

0.1-2.5mm/s. (0.1mm/min. increment)

Cutting disc specification: 350 x 2.5 x 32mm

Worktable size: 280mm x 310mm

Worktable Y-axis travel: 275mm

Motor power: 3KW

Power supply: 380V, 50Hz, three phases

Dimensions: 890 x 800 x 600mm

Net weight: 200 KG
