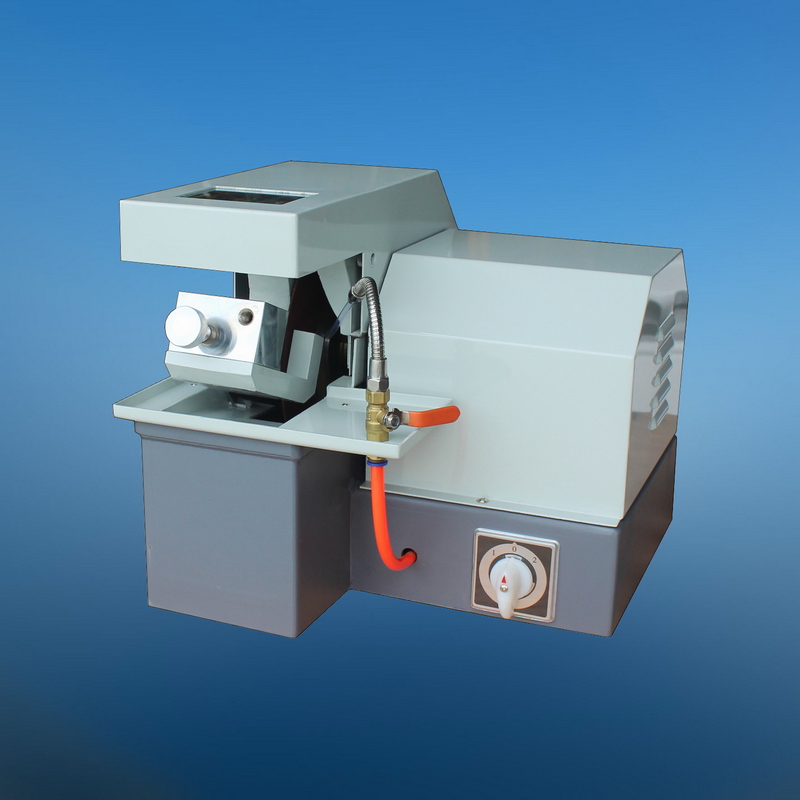

MODEL Q-2 METALLOGRAPHIC SPECIMEN CUTTING MACHINE
Taking advantage of rolling sheet wheel with high speed, Model Q-2 Metallographic specimen cutting machine can obtain metallographic specimen and it can be widely used to cut various metal materials in metallographic laboratories. The equipped cooling system can clear up the heat produced during cutting so that it will avoid the metallographic structure deforming of specimen because of heating influence. Besides various metal materials, this machine can also be used to cut other non-metal material such as plastic, rubber hose etc.
Technical specifications
Max. cutting diameter: Ø30mm Sand wheel specification: 250 x 2 x 32mm Sand wheel rotating speed: 2800 rpm Motor: 1.1 KW Power supply: three phases, 380V, 50Hz. Dimensions: 470 × 390 × 360 mm Net weight: 60 Kg
|
||||
