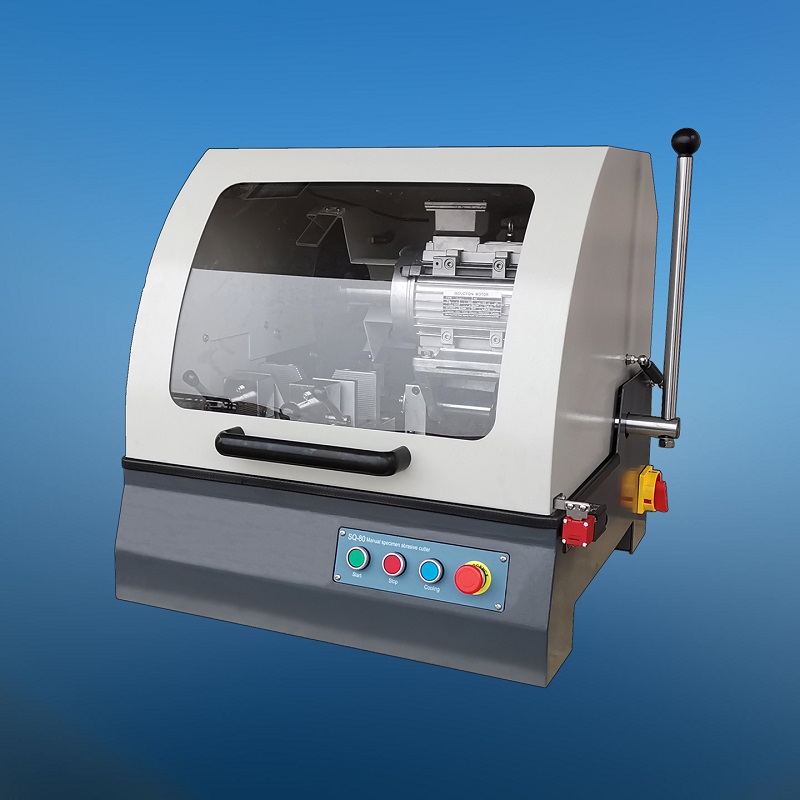

MODEL SQ-100

METALLOGRAPHIC SPECIMEN CUTTING MACHINE

        Model SQ-100 Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Features

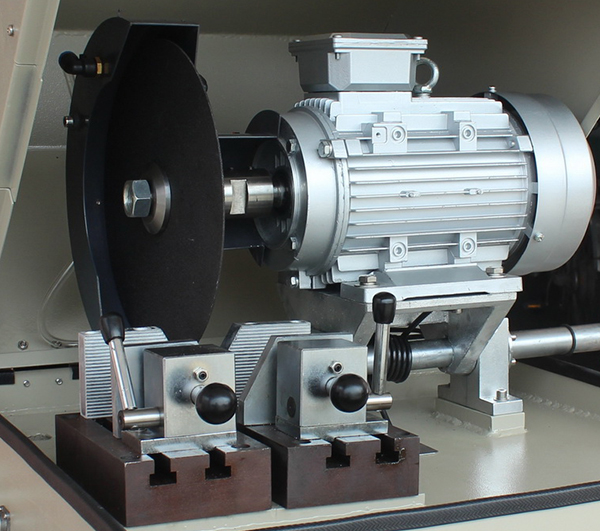

• Quick clamping vice.

• LED Lighting system

• Large volume water cooling system

Technical specifications

Max. cutting diameter: Ø100 mm

Rotating speed of main shaft: 2800 rpm

Sand wheel specification: 300 x 2.5 x 32 mm

Power supply: 380V, 50Hz (three phases)

Motor: 3 KW

Dimensions (L x W x H): 770 x 710 x 700 mm

Weight: approx. 136 Kg.
