Laizhou Lyric Testing Equipment Co., Ltd.

►TORSION, BENDING & OTHER TESTING MACHINES

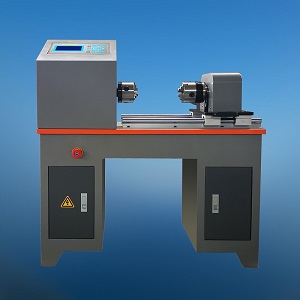

★ MODEL NDS-100 / 200 / 500 / 1000 / 2000 / 3000 SERIES DIGITAL DISPLAY ELECTRONIC TORSION TESTING MACHINE ★
	★ Maximum torque (Nm): 100-3000 ★ Torque range (Nm): 2%-100%F.S ★ Minimum reading of torque: 0.01Nm These torsion testing machines adopt the imported servo motor and driver, and they are used to test the static torsion mechanics performance of metal materials, non-metal materials and various components such as transmission shaft, half shaft, bimetallic materials parts, joints and so on.

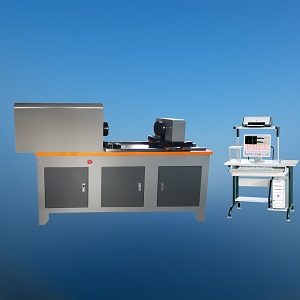

★ MODEL NDW-200 / 500 / 1000 / 2000 / 3000 / 5000 SERIES COMPUTER CONTROLLED ELECTRONIC TORSION TESTING MACHINE ★
	★ Maximum torque (Nm): 200-5000 ★ Torque range (Nm): 2%-100%F.S ★ Minimum reading of torque: 0.01Nm These torsion testing machines adopt the imported servo motor and driver, and they are used to test the static torsion mechanics performance of metal materials, non-metal materials and various components such as transmission shaft, half shaft, bimetallic materials parts, joints and so on.

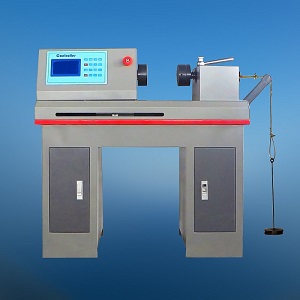

★ MODEL NXC-3 METAL WIRE TORSION TESTING MACHINE ★
	★ Metal wire testing range: Ø1-3mm ★ Torsional speed: 60-120 rpm ★ Distance between grippers: 300mm This torsion testing machine is mainly used to measure the ability of metal wire with diameter of 1-3mm to bear plastic deformation in unidirectional or bidirectional torsion. The surface defects of wire can be displayed in the testing process.

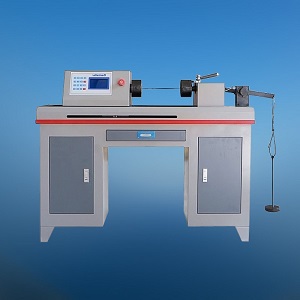

★ MODEL NXC-10 METAL WIRE TORSION TESTING MACHINE ★
	★ Metal wire testing range: Ø3-10mm ★ Torsional speed: 30-60 rpm ★ Distance between grippers: 500mm This torsion testing machine is mainly used to measure the ability of metal wire with diameter of 3-10mm to bear plastic deformation in unidirectional or bidirectional torsion. The surface defects of wire can be displayed in the testing process.

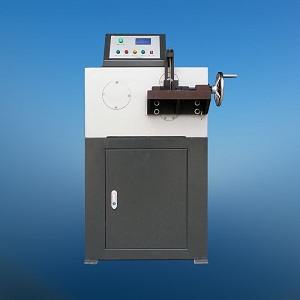

★ MODEL JWB-10 METAL WIRE ROD REPEATED BENDING TESTING MACHINE ★
	★ Diameter of wire rod work piece: 1-10mm ★ Thickness of sheet work piece: 0.3-3mm ★ Bending angle: ±90° ★ Bending speed: no more than 60 times per mintue This bending testing machine is mainly used for ± 90 ° repeated bending test of metal wire and plate, such as steel wire, reinforcement, steel strand, bare wire, copper alloy contact wire, steel sheet, steel strip, etc. around the jaw with specified radius.

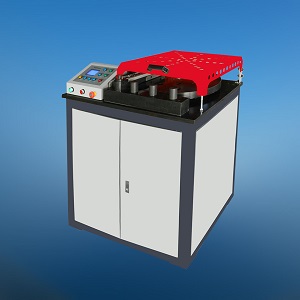

★ MODEL GW-40B STEEL BAR BENDING TESTING MACHINE ★
	★ Maximum steel bar diameter: Ø40mm ★ Positive bending angle: 0-180° ★ Rotation speed of working disc: less than 20° per second This steel bar bending testing machine is a kind of processing equipment for cold bending test and plane reverse bending test of steel bars. This equipment is an ideal equipment for steel mills and quality inspection units to test the bending and reverse bending properties of ribbed steel bars.
