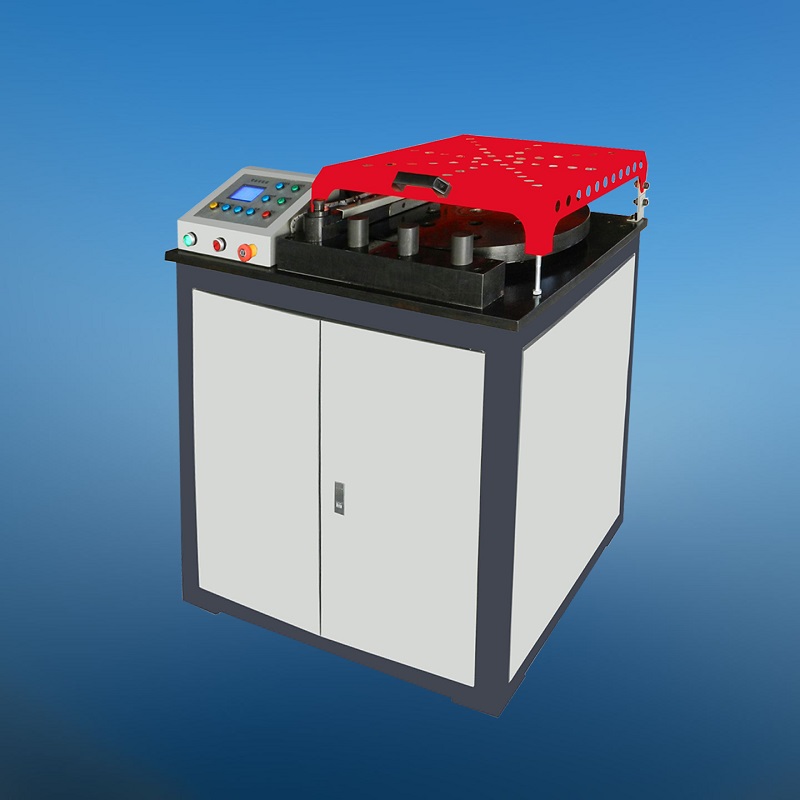

MODEL GW-40B STEEL BAR BENDING TESTING MACHINE

Overview:

      Steel bar bending testing machine is a special equipment for cold bending test and plane reverse bending test. The main technical parameters meet the requirements of GB/T  1499.2-2018, YB/T 5126-2003 and ISO 10065:1900 on cold bending test and plane reverse bending test. This equipment is an ideal test equipment for steel mills and construction units to inspect the bending and bending properties of steel bars.

      This steel bar bending testing machine has the advantages of simple structure, stable operation, low angle of bending, easy to operate and maintain, etc.

Installation:

      The machine shall be installed on a stable basis, its horizontal flatness error shall not be greater than 0.5/1000. The machine shall be connected with power supply with three-phase four wire system, 50 Hz, 380 V.

Technical parameters:

• The diameter range of bending steel bar is φ 6 - φ 40mm

• The forward bending angle is arbitrarily set within 0, - 180 degrees

• Reverse bending angle 0-180 ° can be set arbitrarily

• Working disc speed 1.4r/min

• Motor power 1.5kw

• Machine shape 1200 × 750 × 1000 (mm)

• Machine weight 750KG

Structure introduction:

      The structure of the host is mainly composed of the following parts:

• Brake motor

• Cycloid gear reducer

• Working panel

• Hold down device

• Rack

• Worktable

• Working shaft and bending sleeve

• Electrical part

Main configuration of testing machine

1. Host machine

2. Working shaft: φ 25mm   1 pc., φ 42mm    3 pcs.

3. Steel bar bending accessories (standard accessories)

HRB400

Forward bending core: Ф 24, Ф 32, Ф 40, Ф 48, Ф 56, Ф 64, Ф 72, Ф 80, Ф 88, Ф 100, Ф 140, Ф 160, Ф 180, and Ф 200 mm

4. According to the needs of customers, we can also provide other specifications of bending core accessories.
