MODEL
ZZY-25

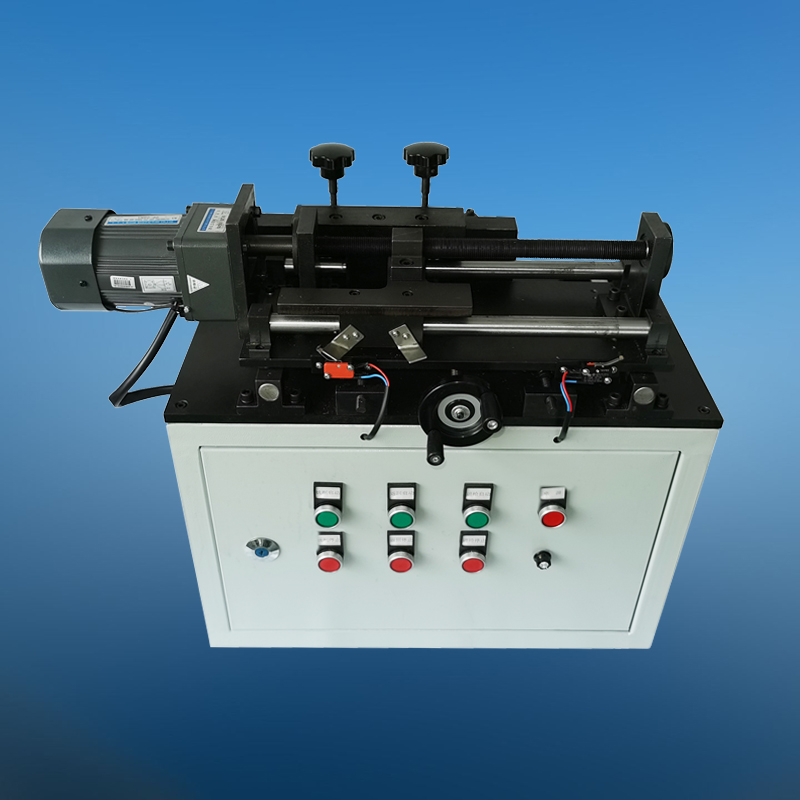

AUTOMATIC DUMBBELL SAMPLE MAKING MACHINE
Overview:
Model ZZY-25 automatic dumbbell sample
making machine is mainly used for the preparation of dumbbell and strip samples
in non-metallic tensile test. It meets the standards of GB/T 1040, GB/T 8804.2
etc.
Technical parameters
-
Maximum sample preparation thickness: 0-20mm
-
Maximum sample preparation length: 260mm
-
Automatic feeding speed: 0-216 mm / min (adjustable)
-
Specification of dumbbell shaped and plane cutting tools:
30×12×30 mm
-
Milling cutter rotating speed: 2800 rpm
-
Cylindrical milling cutter material: 4-edge cemented
carbide / CVD diamond coating
-
Dumbbell sample milling motor power: 180W
-
Dumbbell sample automatic feeding motor power: 60W
-
Power supply: AC 220V, 50Hz
-
Overall dimension: 700×500×800 mm
|
|
