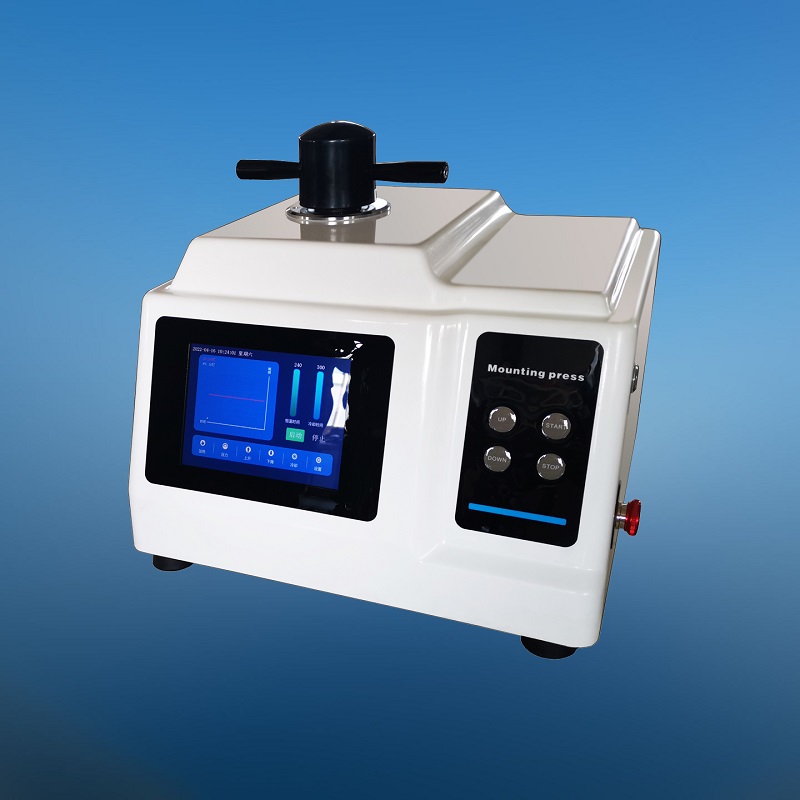

MODEL ZXQ-2H

AUTOMATIC METALLOGRAPHIC SPECIMEN MOUNTING PRESS



        This automatic mounting press is used to inlay small specimens, specimens in irregular shapes, or specimens which are not easy to take up, it is the preceding process before grinding and polishing metallurgical or rock specimens. The inlaying operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallurgical microscope.


     The machine is equipped with built-in water cooling system and it is heated, and intensified with pressure automatically. After the formation of the specimen under pressure, it stops the operation and discharges the pressure also in an automatic way. With another press of the knob, the machine automatically turns up the specimen, which may be taken away. Note: It is only for the hot solid materials (such as urea-formaldehyde moulding powder and bakelite powder) with the temperature automatically regulated and controlled.

Features

  • Electric loading of pressure

  • Equipped with water cooling system

  • Touch screen LCD operation

  • Automatic mounting process



Main parameters


Mould diameter: Ø 22mm or Ø 30mm or Ø 45mm (choose 1 from 3)
Heater: 850W

Total input power: 950W
Power supply: single phase, 220V, 50Hz
Dimensions: 475 x 455 x 430mm
Net weight: 52Kg
