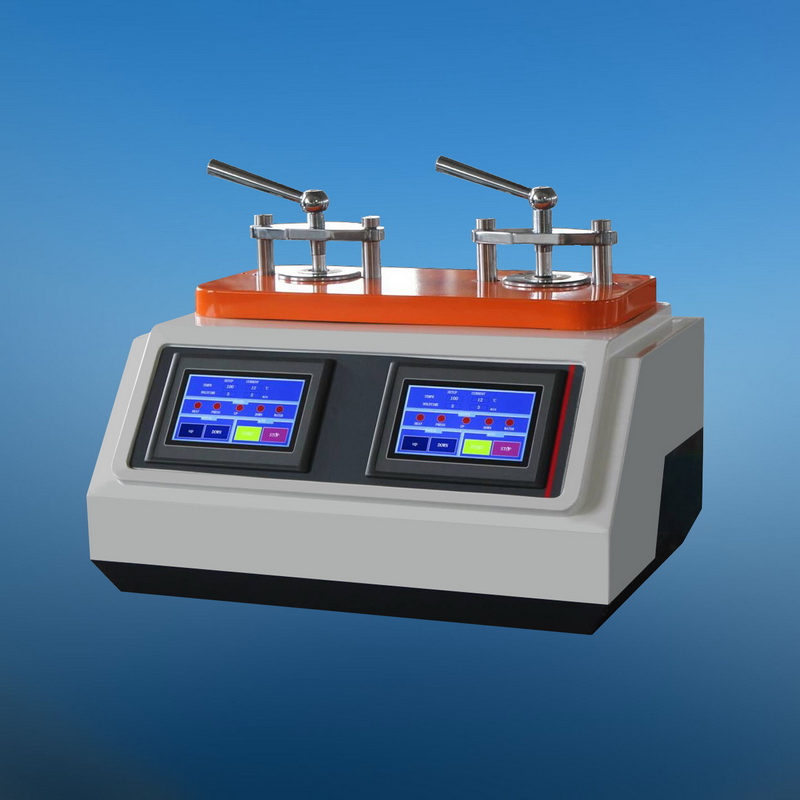

MODEL ZXQ-2AS DOUBLE-STATION

AUTOMATIC METALLOGRAPHIC SPECIMEN MOUNTING PRESS



        Model ZXQ-2AS automatic metallographic specimen mounting press is a kind of full automatic mounting press, equipped with double working positions and in-out water cooling system. It is suitable for the hot mounting (thermo-hardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.



Features

  • Specially designed mould locking cap

  • Double working positions which increase the sample preparing capacity

  • Touch screen operation, automatic mounting process

  • Equipped with water cooling system



Main specifications



Mould diameter: Ø25mm, Ø30mm, Ø40mm, Ø50mm (choose 2 types at random)

Cooling method: water cooling

Heater: 1500W*2

Total power consumption: 3300W

Power supply: single phase, 220V, 50Hz

Dimensions: 670 x 600 x 510mm

Net weight: 95 Kg
