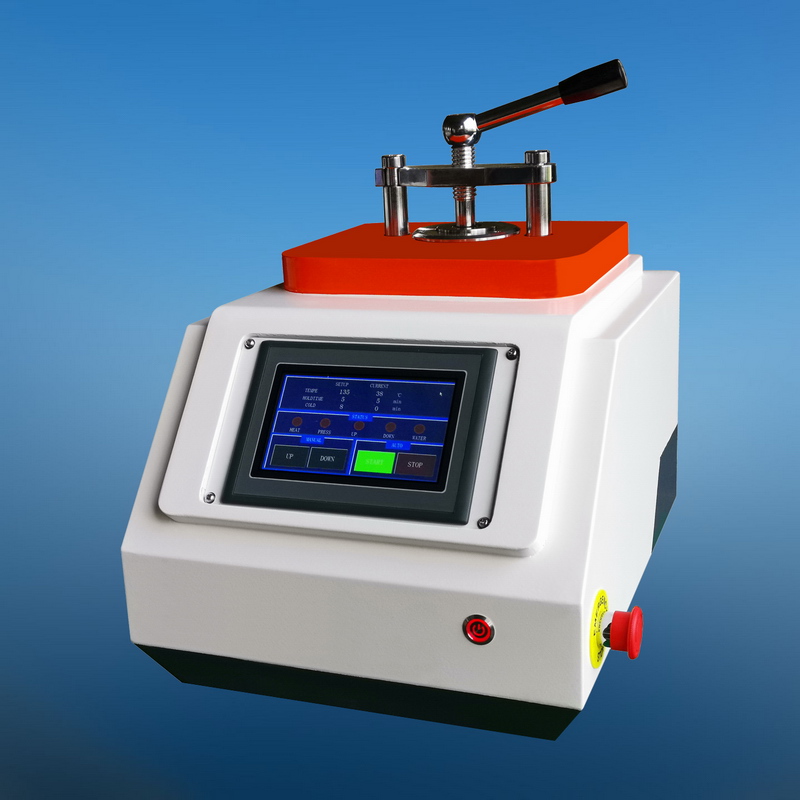

MODEL ZXQ-2A AUTOMATIC METALLOGRAPHIC SPECIMEN MOUNTING PRESS
Model ZXQ-2A automatic metallographic specimen mounting press is a kind of automatic mounting press, equipped with in-out water cooling system. It is suitable for the hot mounting (thermo-hardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically. It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features
Main specifications
Mould diameter: Ø25mm / Ø30mm / Ø40mm / Ø50mm (choose 1 type at random) Cooling method: water cooling Heater: 1500W Total power consumption: 1700W Power supply: single phase, 220V, 50Hz Dimensions: 500 x 450 x 510mm Net weight: 50 Kg
|
||||
