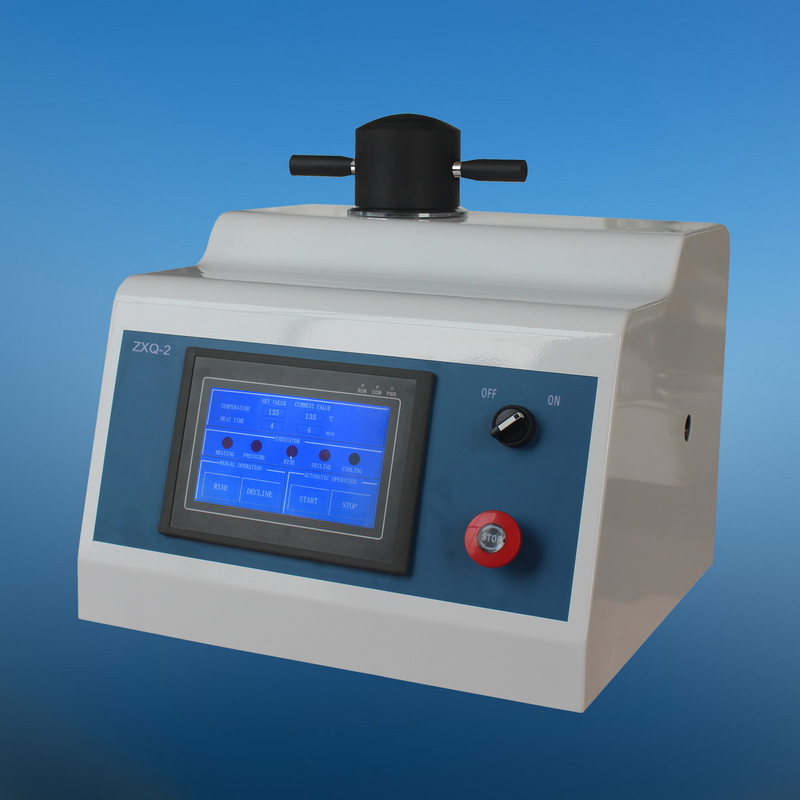

MODEL ZXQ-2
AUTOMATIC METALLOGRAPHIC SPECIMEN MOUNTING PRESS
This automatic mounting press is used to inlay small specimens, specimens in
irregular shapes, or specimens which are not easy to take up, it is the
preceding process before grinding and polishing metallurgical or rock specimens.
The inlaying operation serves to facilitate the grinding and polishing
operations of the specimens and the routine observation of the composition of
the material under the metallurgical microscope.
The machine is equipped with built-in water cooling system and it is
heated, and intensified with pressure automatically. After the formation of the
specimen under pressure, it stops the operation and discharges the pressure also
in an automatic way. With another press of the knob, the machine automatically
turns up the specimen, which may be taken away. Note: It is only for the hot
solid materials (such as urea-formaldehyde moulding powder and bakelite powder)
with the temperature automatically regulated and controlled.
Features
-
Electric loading of pressure
-
Equipped with water cooling system
-
Touch screen LCD operation
-
Automatic mounting process
Main parameters
Mould diameter: Ø 22mm or Ø 30mm or Ø 45mm (choose 1 from 3)
Heater: 850W
Total
power consumption: 1000W
Power supply: single phase, 220V, 50Hz
Dimensions: 420 x 390 x 460mm
Net weight: 55 Kg
|
