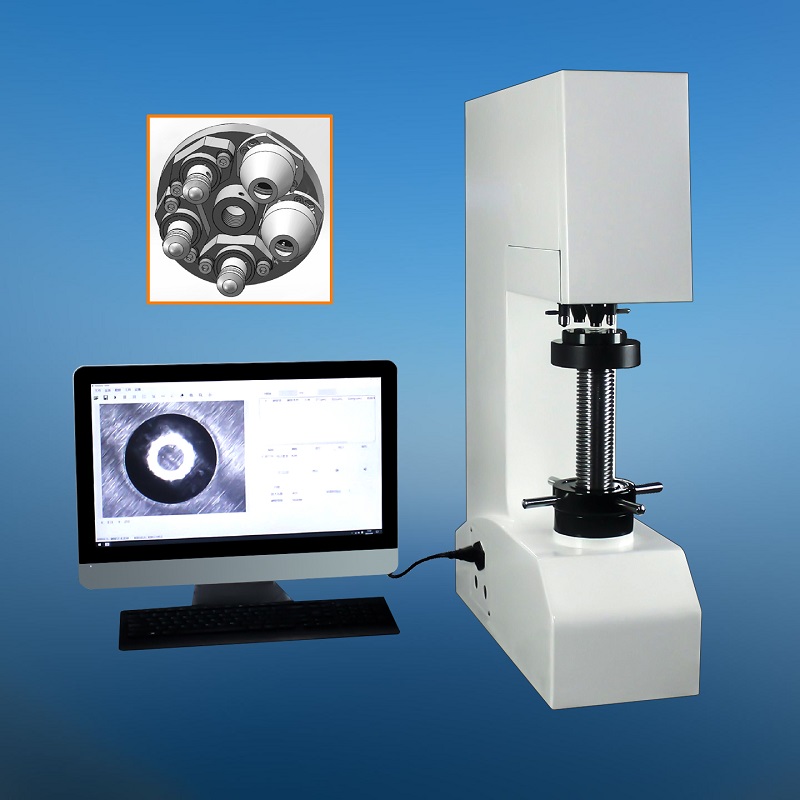

MODEL ZHBS-3000 SERIES

COMPUTERIZED DIGITAL DISPLAY BRINELL HARDNESS TESTER



Product introduction



      This series of Brinell hardness tester is a perfect combination of Brinell hardness tester and computer to form a series of Brinell hardness tester system with high cost performance and convenient use.



Main features

  • Equipped with computer, which controls the hardness tester.

  • Electronic test force loading, high-precision sensor, unique closed-loop control system.

  • Total 10 levels of test forces, each level of force is automatically compensated.

  • The test force can be corrected by software through standard dynamometer or standard block.

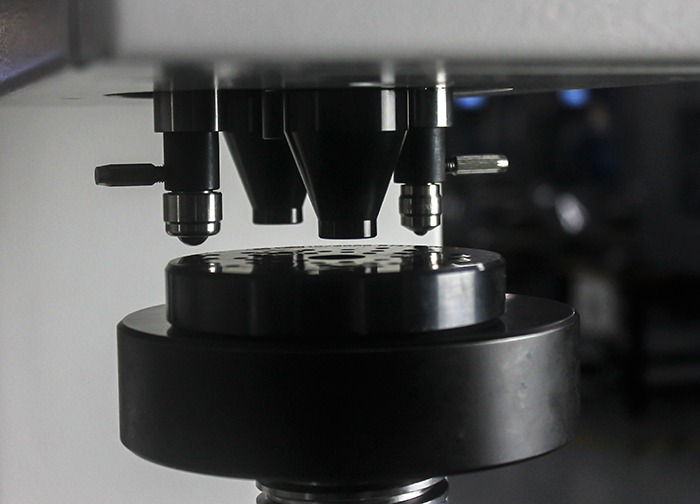

  • Automatic turret shifting between indenter and objective lens (except ZHBS-3000-T1). During the test, the indenter and objective lens automatically switch to each other, and the test points automatically and accurately locate, load and unload automatically.

  • The main machine is equipped with double or triple indenters (choose two or three indenters from 10, 5, 2.5mm and 1mm), double objective lenses (double magnification 20X and 40X), and there is no need to replace the indenter and measuring objective lens (ZHBS-3000-T1Z, ZHBS-3000-T2Z, ZHBS-3000-T3Z) for large and small Brinell indentations.

  • The sample rises and falls automatically in Z-axis direction, which can obtain the hardness value by pressing one key (ZHBS-3000ATZ).

  • 1.3 (or 5.0) Mega pixel industrial digital camera is adopted, with clear image.

  • The computer automatically measures the indentation size and hardness value.

  • The hardness value correction can be calibrated according to the standard hardness block or length scale.

  • Automatic hardness conversion between Brinell, Rockwell, Vickers or other hardness scales according to GB / ASTM standards.

  • Powerful database function, permanent storage and convenient query.

  • The interface and functions can be customized, such as external QR code scanning and other functions (optional).

  • Automatically generate user-defined inspection report. Automatically record measurement data and output word report according to user customization. Automatically record the measurement data, and save all data in Excel format.





Main technical parameters



Model

ZHBS-3000-T1

ZHBS-3000-T1Z

ZHBS-3000-T2Z

ZHBS-3000-T3Z

ZHBS-3000ATZ

Description

1- indenter,

1-objective lens

1- indenter,

1-objective lens

Auto turret

2- indenter,

2-objective lens

Auto turret

3-indenter,

2-objective lens

Auto turret

3-indenter,

2-objective lens

Auto turret,

Automatic Z-axis elevating

Computer type

Integrated computer or industrial control touch screen computer (optional)

Brinell hardness scale

HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750,

HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000

Test force(Kgf)

62.5kgf (612.9N), 100kgf (980.7N), 125kgf (1226N), 187.5kgf (1839N), 250kgf (2452N),

500kgf (4903N), 750kgf (7355N),  1000kgf (9807N), 1500kgf (14710N), 3000kgf (29420N)

Standards

BSEN 6506, ISO 6506, ASTM E10, GB/T 231

Test force accuracy

62.5~250kgf: ≤1%

500~3000kgf: ≤0.5%

Measuring unit resolution

0.1um

Hardness value  resolution

0.1HBW

Dwelling time

1~99 s

Max. Height of test piece

200mm (Customizable)

Depth of throad

155mm (Customizable)

Computer

19 inch LCD, Win 10 Operating system

Camera

1.3 Mega pixels (5.0 Mega optional)

Power supply

AC 220V +5%, 50~60Hz

Weight

110kg



Standard accessories



No.

Name (specification)

 Quantity

1

Integrated computer or industrial control touch screen computer (optional)

1 set

2

Camera

1 set

3

Camera adaptor

1 pc.

4

Large flat testing table

1 pc.

5

Small flat testing table

1 pc.

6

V-shaped testing table

1 pc.

7

Ø 2.5mm Hard alloy ball indenter

1 pc.

8

Ø 5mm Hard alloy ball indenter

1 pc.

9

Ø 10mm Hard alloy ball indenter

1 pc.

10

Standard hardness block HBW/3000/10 (150~250)

1 pc.

11

Standard hardness block HBW/1000/10 (75~125)

1 pc.

12

Standard hardness block HBW/187.5/2.5 (150~250)

1 pc.

13

Spare fuse (2A)

2 pcs.

14

Power cord

1 pc.

15

Dust-proof plastic bag

1 pc.

16

Certificate

1 Share

17

Usage instruction manual

1 Share
