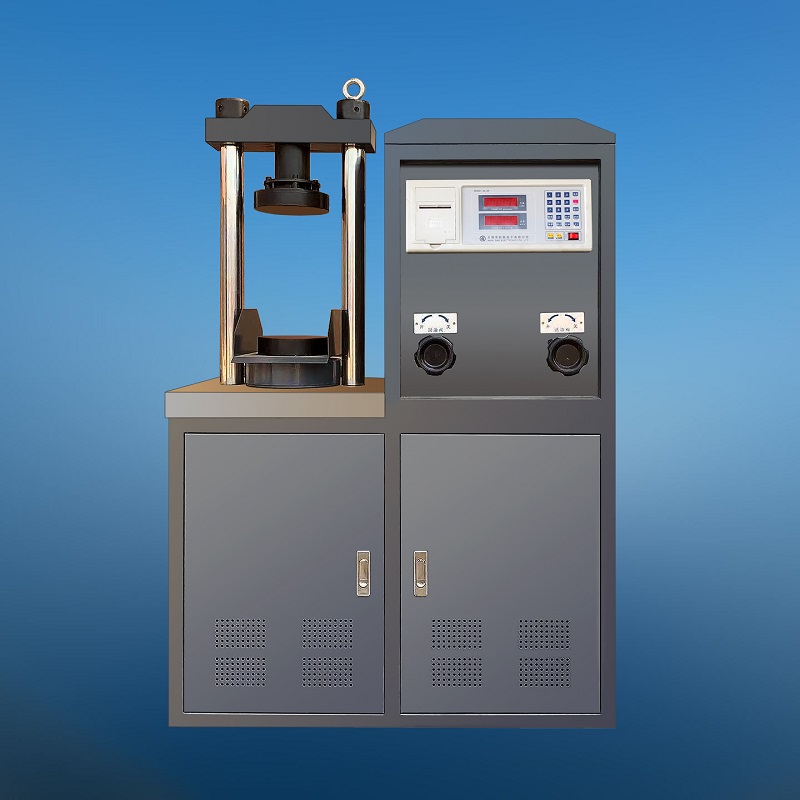

MODEL YES-300B

DIGITAL DISPLAY COMPRESSION TESTING MACHINE

Introduction

      This YES-300B digital display compression testing machine is mainly used for compressive strength test of building materials such as rock, concrete, cement products, hollow brick, refractory, engineering materials, and other building material etc. It is the necessary equipment to be used in the industries of highway, railway, bridge, construction, building materials, and laboratories of colleges and universities, enterprise production, and research institutions.

Features

• The machine adopts hydraulic loading and electronic force measurement, and has the functions of load digital display, loading rate display, maximum load holding, overload protection and power-off data holding, etc.

• The hydraulic system is controlled manually with the features of easy operation, safety and reliability.

• The compression testing space is adjusted manually.

• The testing data is collected and processed by intelligent digital meter, and test report with the test date, number, load, compressive strength, etc. can be printed out.

• The testing machine meets the testing requirements of GB/T 50081, GB/T 2611, and GB/T 3159, etc.

Main technical parameters:

• Max. load: 300KN

• Load display accuracy: ±1%

• Piston stroke: 80mm

• Max. Piston speed: 50mm/min.

• Compression space: 210mm

• Pressure plate size: Ø170mm

• Power supply: AC 380V, 50Hz, three phases

• Weight: 300kg

• Overall dimension (L × W × H): 850 × 400 × 1350mm
