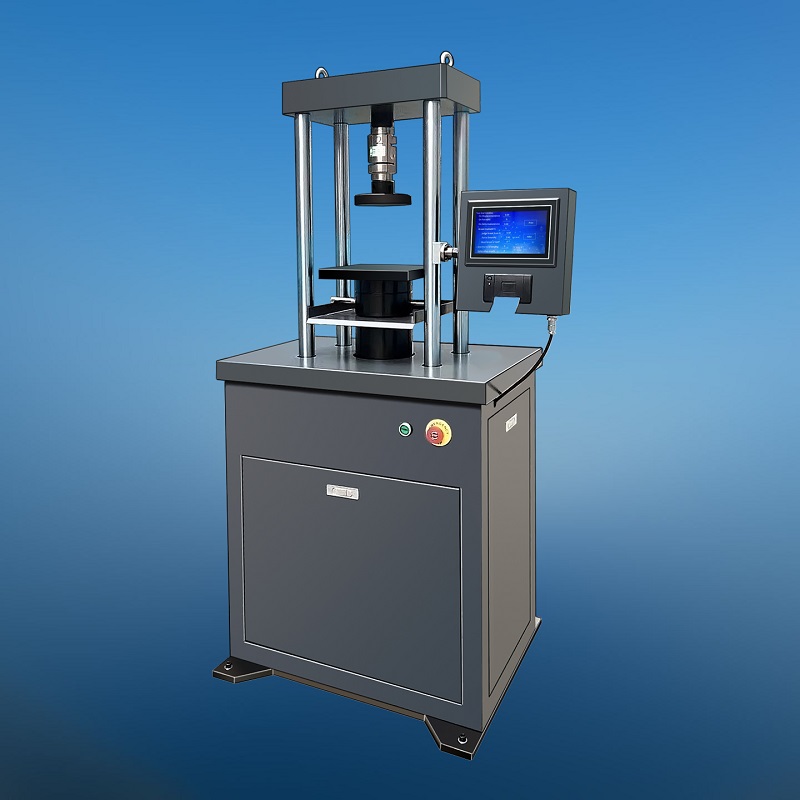

MODEL
YDS-300D
DIGITAL DISPLAY ELECTRONIC COMPRESSION TESTING
MACHINE
Introduction
YDS-300D digital
display electronic compression testing machine is mainly used for
the compressive strength test of cement materials, and also suitable
for quality supervision, teaching and scientific research,
aerospace, iron and steel metallurgy, automobile, rubber and
plastic, weaving materials and other pressure tests. The control
precision is high and the reliability is good, which can meet the
relevant standards of cement material test such as GB and ISO. It is
the ideal testing equipment to be widely used in construction
industry, testing departments and enterprises etc.
Features
-
220 V Power supply, convenient layout of laboratory power
supply.
-
Servo motor drive, compared with the traditional way of oil
pressure, no oil leakage, valve stuck and other disadvantages.
-
Load sensor force measurement, high precision, measurement range
up to 2% ~ 100% of the full range.
-
Compared with the traditional hydraulic method, it does not need
to change the oil every year, saves the oil change cost, and has
no vulnerable parts, so it has high cost performance.
-
It has perfect limit protection, overload protection, emergency
stop and other safety protection functions.
-
Users
can customize the data processing software to meet the
requirements of special material test methods according to their
needs. For details, please refer to the software manual.
-
No pollution, low noise and high efficiency.
Main technical parameters:
-
Four force sensors: 10KN, 40KN, 100KN, 300KN, 1 pc. for each
-
Accuracy of test force: ± 1%
-
Force effective measuring range: 1KN~300KN
-
Test force resolution: 0.01% FS
-
Loading speed: 0~50mm / min stepless speed regulation (set by
the operator on the controller)
-
Displacement measurement range: 0 ~ 10mm
-
Moving distance of screw disc: 100mm
-
Column spacing: 295mm
-
Test space: 116mm~266mm
-
Width of test space: 300mm
-
Power: 1.5KW
-
Power supply: 220 V ± 10%, 50Hz, single phase
-
Overall dimension (L × W × H): 570 × 430 × 1675mm
-
Weight: 400Kg
Standard configuration
-
Host machine:
1 set
-
Digital display meter, measurement & control
card:
1 set
-
Mini printer:
1 set
-
Load sensor:
4 pcs.
-
Compression accessories:
1 set
-
Operation manual, certificate and packing list:
1 set
|
|
