MODEL

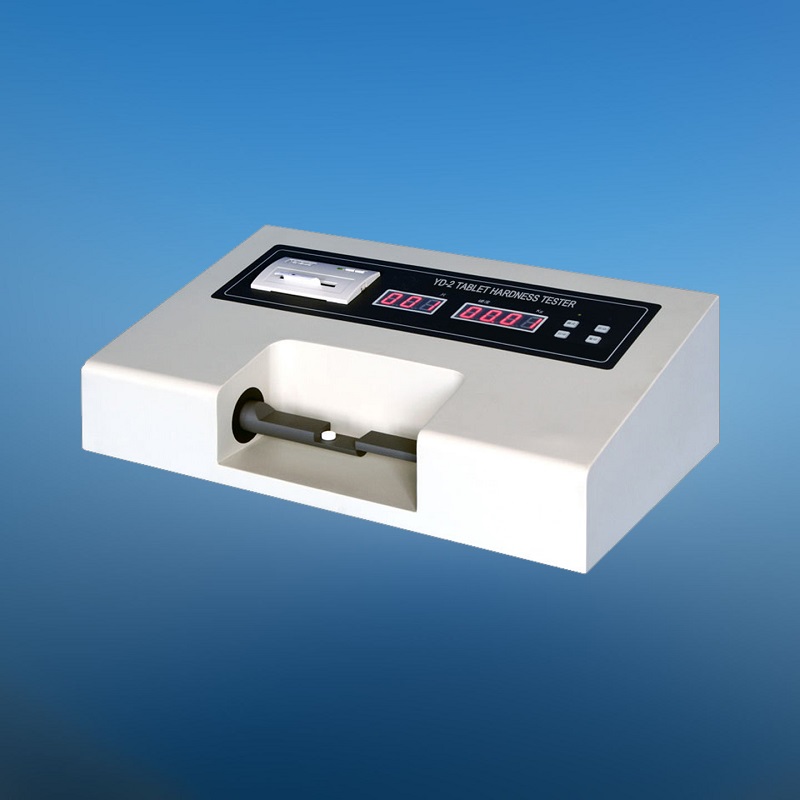

YD-2 TABLET HARDNESS TESTER
Model YD-2 Tablet hardness
tester is used for detecting breaking hardness of tablet. It is equipped with
built-in micro printer.
Applicable standards:
Corporate standard (Tablet
hardness tester) Q/12XQ0186-2010
Features:
-
The tablet is loaded
artificially and pressed automatically.
-
There is high accuracy press
sensor and hardness data is displayed on LED.
-
It tests tablet hardness
continuously. The biggest number is 100 pieces of a group.
-
Time of testing will be
saved by directly measuring the diameter.
-
Test data is displayed and
locked automatically.
-
Automatic resetting and
cycle testing.
-
Built-in printer. It can
deal with and print out such data as: hardness of each tablet, the maximum
value, the minimal value, the average value and the number of tablets, etc.
-
The parameters can be preset
at any time. Either preset or real data is displayed on the LED.
-
Automation: auto-test,
auto-diagnose, auto-alarm.
Specifications:
Hardness measuring range:
2～199.9 N
Hardness measuring accuracy:
Max. ±0.05%
Probe procession range: 3～40 mm
Test period: ≥20 seconds per
test
Max measuring number for each
group: ≤100 pieces
Power supply: 220V/ 50Hz, 60W or
110V/ 60Hz, 60W
Dimensions: 500*300*160 mm
Net weight: 12 Kg
|
