MODEL

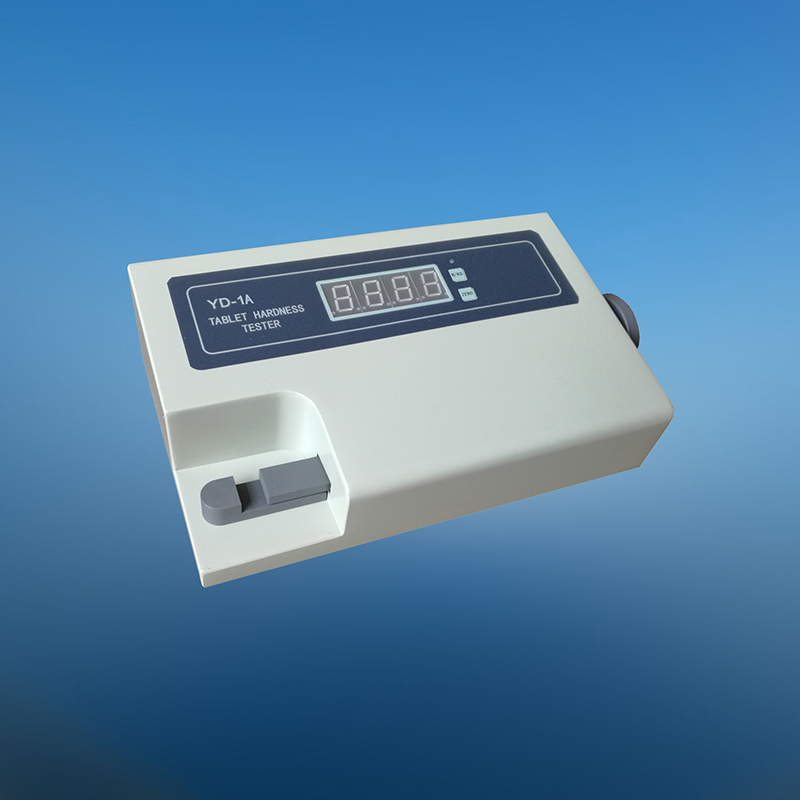

YD-1A TABLET HARDNESS TESTER
Model YD-1A
Tablet hardness tester is used for detecting breaking hardness of tablet.
Applicable standards:
Corporate standard
(Tablet hardness tester) Q/12XQ0186-2010
Features:
-
The tablet is
loaded and pressed artificially.
-
There is high
accuracy press sensor and AD converter.
-
Hardness data
is displayed on LED.
-
Automatically
zero after warming up.
-
Digital
calibration and zero adjustment.
-
N / KG
conversion by one-button.
-
It tests
tablet hardness continuously.
-
Test data is
displayed and locked automatically, and test can be reset and cycled.
-
Automation:
auto-test, auto-diagnose, auto-alarm.
Specifications:
Hardness range: 2～200N
/ 0.2～20Kg
Hardness accuracy:
±1.5%
Moving distance of
probe: 3~20mm
Power: 220V/ 50Hz/
5W (optional 110V/ 60Hz/ 5W)
Dimensions:
400x240x160mm
Weight: 4.5KG
|
