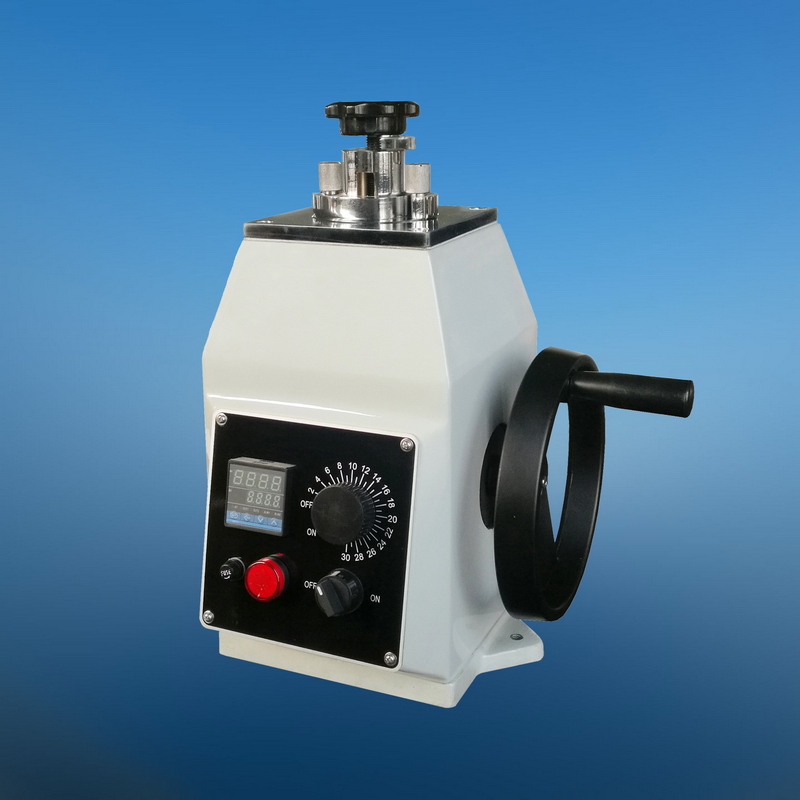

MODEL XQ-2B METALLOGRAPHIC SPECIMEN MOUNTING PRESS

        Model XQ-2B Metallographic specimen mounting press is suitable for the thermo-hardening plastic pressing of the small metallographic specimen which is not idiomorphic or hard to take. After forming, it will be very easy to process the grinding, polishing of the specimen and it is also convenient to process measuring of metallographic structure under metallographic microscope. It is the ideal sample preparing equipment to be used in factories, researching institutes and college laboratories.

The machine may work stably under the following working condition:

• The temperature of surrounding medium can not be less than 10 °C  and more than 40 °C

• The relative humidity of air should be no more than 85% (20 °C)

• The voltage fluctuation should be no more than 15%

• There should be no obvious vibration source around

• There should be no current conducting dust, explosive and corrosive air.

Technical specifications

Mould diameter: Ø22mm / Ø30mm / Ø45mm

Heater: 650W

Temperature adjusting range: 100-180 ºC

Power supply: single phase, 220V, 50Hz

Dimensions: 34 × 27 × 40 cm

Net weight: 33 KG
