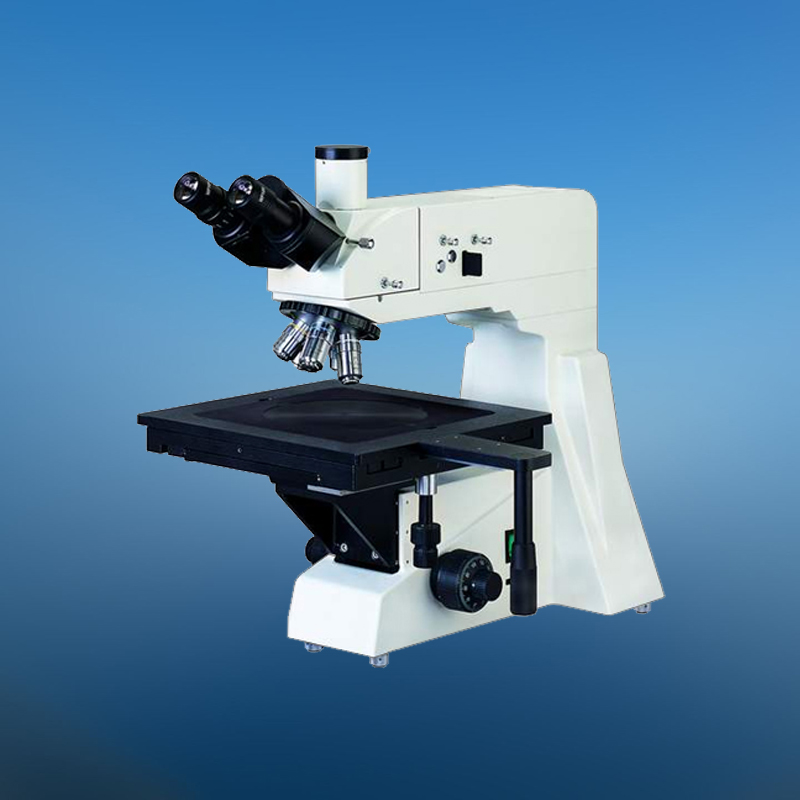

MODEL XJP-11 REFLECTED METALLURGICAL MICROSCOPE

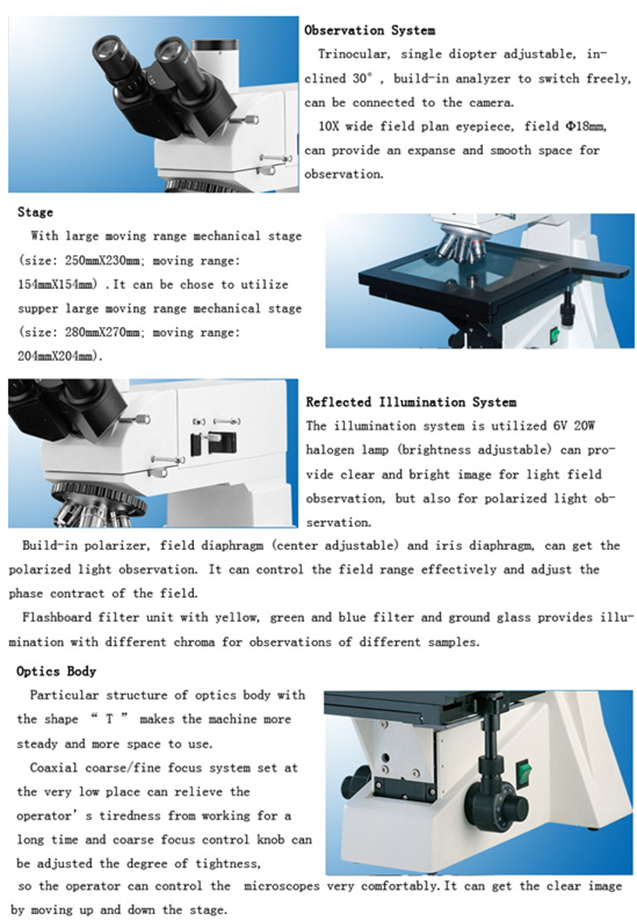

Features:
-
With plan achromatic objectives with long working distance
(no cover glass) and wide-field eyepieces, can get clear pictures and wide
view field.
-
With large move range mechanical stages, can move quickly and
slowly.
-
Coaxial coarse/fine focus system, with tension adjustable and
up stop, minimum division of fine focusing: 0.7μm.
-
6V 20W halogen lamp, adjustable brightness.
XJP-11 series
reflected metallurgical microscopes are suitable to observe the microscopical
surfaces of non-transparent object. They are equipped with large move range
mechanical stages, reflected vertical illumination and set polarizer device in
trinocular. They have clear and high-contrast picture beautiful sculpt,
convenient control and etc. they are the ideal instrument in research work in
metallography, mineralogy, precision engineering, electronics and etc. They are
suitable for scientific research, teaching demonstration in the colleges and
factory.
Standard Configuration
|
Model |
XJP-11 |
XJP-11A |
|
Eyepiece |
Wide field WF10X(Φ18mm) |
|
Objective |
Plan achromatic objectives with long working distance
(no cover glass) PL 5X/0.12 |
|
Plan achromatic objectives with long working distance
(no cover glass) PL L10X/0.25 |
|
Plan achromatic objectives with long working distance
(no cover glass) PL L20X/0.40 |
|
Plan achromatic objectives with long working distance
(no cover glass) PL L40X/0.60 |
|
Plan achromatic objectives with long working distance
(no cover glass) PL L80X/0.80 |
|
Eyepieces tube |
Trinocular, Inclination of 30˚, (Analyzer with field
diaphragm to switch) |
|
Vertical illumination unit |
6V 20w halogen lamp, brightness control. |
|
Vertical illumination with field diaphragm, aperture
diaphragm and polarizer,
(Y,B,G)filter and frosted filter |
|
Focus system |
Stage adjustable, Coaxial coarse/fine focus system,
with tensional adjustable and up stop, minimum division of fine
focusing: 0.7μm. |
|
Nosepiece |
Quintuple(Frontward ball bearing inner locating) |
|
Stage |
Three layer mechanical
Size:250mmX230mm,
movingrange:154mmX154mm |
Three layer mechanical
Size:280mmX270mm,
movingrange:204mmX204mm |

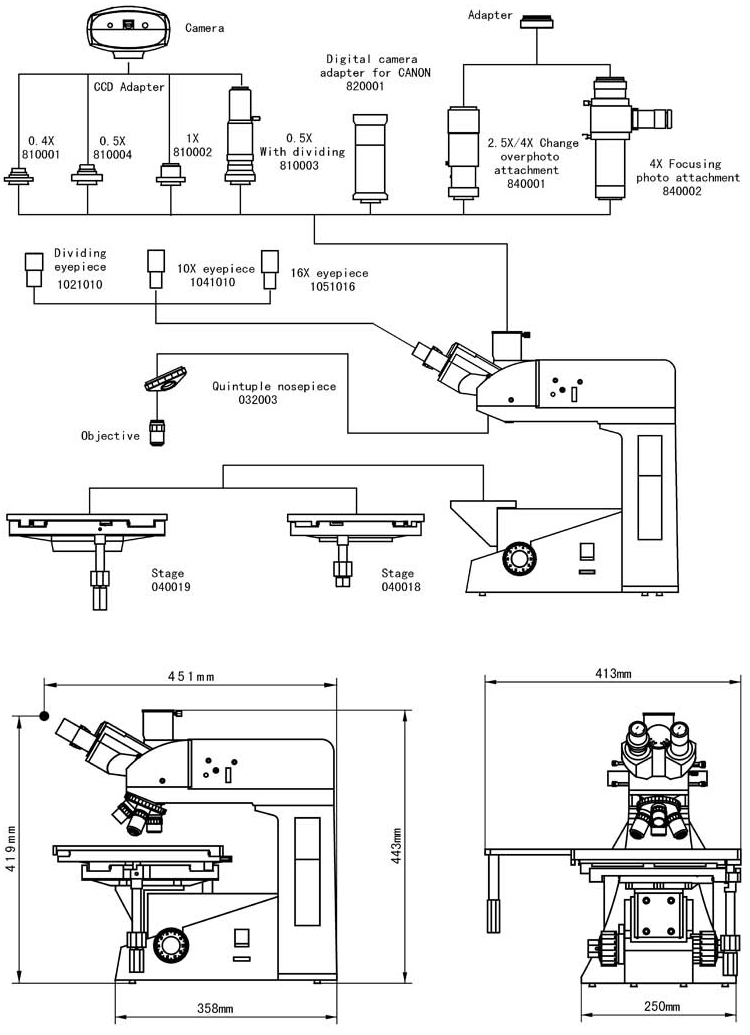

Optional accessories
|
Name |
Sort/Technique parameter |
|
Eyepiece |
Wide field WF16X(Φ11mm) |
|
Dividing 10X(Φ18mm) 0.1mm/Div |
|
Objective |
Plan achromatic objectives with long working distance
(no cover glass)
PL L 50X/0.70 |
|
Plan achromatic objectives with long working distance
(no cover glass)
PL L 60X/0.75 (Spring) |
|
Plan achromatic objectives with long working distance
(no cover glass)
PL L 100X/0.85 (Spring) |
|
Plan achromatic objectives (no cover glass) PL
100X/1.25 (Spring, oil) |
|

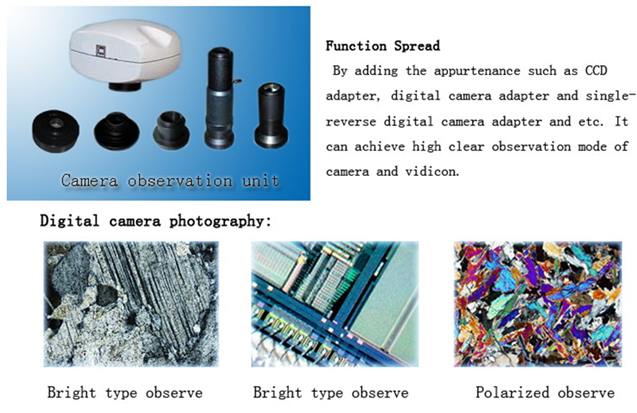

CCD adapter |
0.4X |
|
0.5X |
|
1X |
|
0.5X with dividing 0.1mm/Div |
|
Camera |
DV-1 With USB & video output |
|
DV-2 With USB output |
|
DV-3 With video output |
|
Photo unit |
2.5X/4X Change over photograph attachment with 10X
viewing eyepiece |
|
4X Focusing photograph attachment |
|
MD Adapter |
|
PK Adapter |
|
Digital camera
adapter |
CANON(A610,A620,A630,A640) |
 |
|
