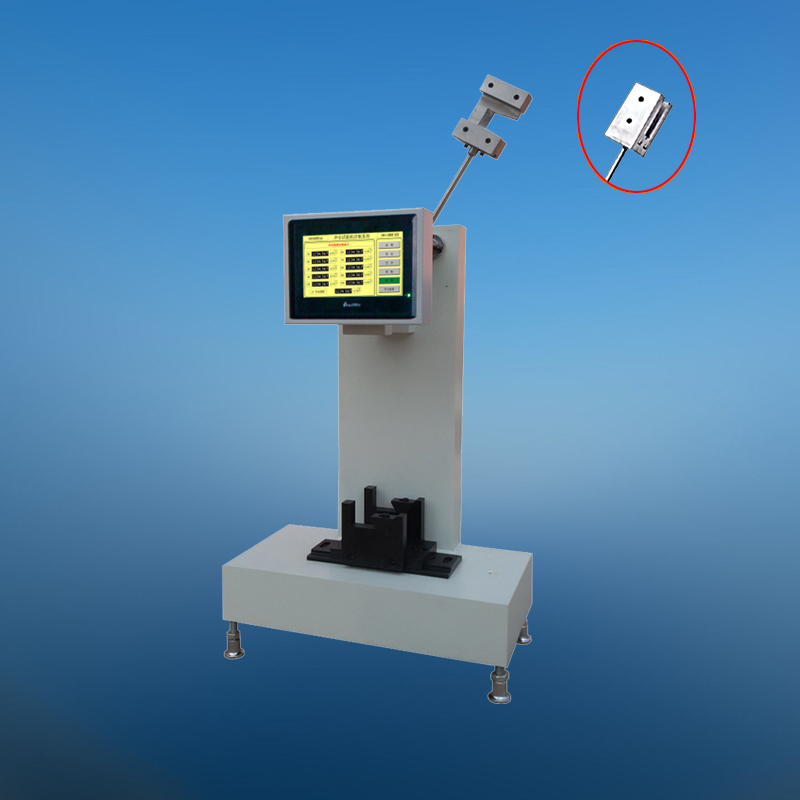

MODEL XJJUD-50Z COMBINED
TOUCH SCREEN DIGITAL
DISPLAY CHARPY
& IZOD IMPACT TESTER
Introduction
This
XJJUD-50Z Combined digital
impact tester is mainly used for the determination of impact
toughness of non-metallic materials such as hard plastics,
reinforced nylon, glass fiber reinforced plastics, ceramics, cast
stone, electrical insulation materials, etc. It is an ideal testing
equipment for chemical industry, scientific research institutions,
colleges and universities, quality testing and other departments.
Characteristic:
-
Combined
energy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J and 1J, 2.75J, 5.5J,
11J, 22J
-
This series of
impact testing machine is an intelligent digital display impact
testing machine developed and produced by microcomputer
technology. The advantage is that it can automatically correct
the energy loss caused by friction and wind resistance, and get
rid of the numerical chart of energy correction due to the
influence of resistance. (the detection of the residual energy
of the pendulum and the correction of the energy loss after the
fracture of the sample are completed once in the process of
impact).
-
This series of
impact testing machines use LCD touch screen display to display
the test results, which makes the reading more intuitive and
improves the accuracy and accuracy of the impact machine.
-
The main
technical parameters of
XJJUD-50Z impact testing machine fully conform to
the requirements of ISO 179, GB/T 1043, JB/T 8762
and
GB/T
1843-2008, JB/T
8761-1998, ASTM
D256-06, ISO 180-2000 standards.
Technical parameters:
|
Impact
speed |
2.9 m/s, 3.8 m/s
& 3.5 m/s |
|
Pendulum
energy |
1J, 2J,
4J, 5J, 7.5J, 15J, 25J and 50J.
1J, 2.75J, 5.5J,
11J and 22J |
|
Pendulum
torque |
Pd1＝0.53590Nm, Pd2＝1.07180Nm,
Pd4＝2.14359Nm, Pd5＝2.67949Nm,
Pd7.5=4.01924Nm, Pd15＝8.03848Nm,
Pd25=13.39746Nm , Pd50＝26.79492Nm,
Pd1=0.53590Nm,
Pd2.75=1.47372Nm,
Pd5.5 =2.94744Nm, Pd11=5.8949Nm,
Pd22=11.7898Nm |
|
The
distance between pendulum center and sample center |
230mm, 395mm &
335mm |
|
Rising angle of the pendulum |
150° |
|
Blade
fillet radius |
R=2±0.5mm,
R=0.8±0.2mm |
|
Jaw fillet
radius |
R=1±0.1mm |
|
Distance between blade and upper jaw |
22±0.2mm |
|
Impact
blade angle |
30°,
75° |
|
Energy
loss of pendulum in no-load impact |
0.5% |
|
Distance
between jaw support lines |
40mm, 60mm
(or 62mm), 70mm, 95mm |
|
Minimum
indication value
of digital display |
0.001J
(below 5J, including 5J); 0.01J (above 5J) |
|
Sample
notch: |
Type A
notch: 45 ° ± 1 °
notch
bottom radius R = 0.25 ± 0.05mm
Type B
notch: 45 ° ± 1 °
notch
bottom radius R = 1 ± 0.05mm
Type C
notch 1: 2 ± 0.2 right angle notch
Type C
notch 2: 0.8 ± 0.1 right angle notch |
|
Net
weight: |
185kg |
|
Dimension: |
550mm ×
350mm × 850mm |
|
Package
size: |
730mm ×
700mm × 1000mm |
Sample type:
Charpy:
|
Sample
type |
Length
L (mm) |
Width
b (mm) |
Thickness
h (mm) |
Distance between jaw support lines |
|
1 |
80±2mm |
10.0±0.5mm |
4±0.2mm |
60 or
62mm |
|
2 |
50±1mm |
6±0.2mm |
4±0.2mm |
40mm |
|
3 |
120±2mm |
15±0.5mm |
10±0.5mm |
70mm |
|
4 |
125±2mm |
13±0.5mm |
13±0.5mm |
95mm |
Izod:
|
Sample type |
Length
L (mm) |
Width
b (mm) |
Thickness
h (mm) |
|
1 |
80±2 |
10.0±0.2 |
4 |
|
2 |
63.5±2 |
12.7±0.2 |
12.7±0.2 |
|
3 |
63.5±2 |
12.7±2 |
6.4±2 |
|
4 |
63.5±2 |
12.7±2 |
3.2±2 |
|
|
