MODEL XJJD-5

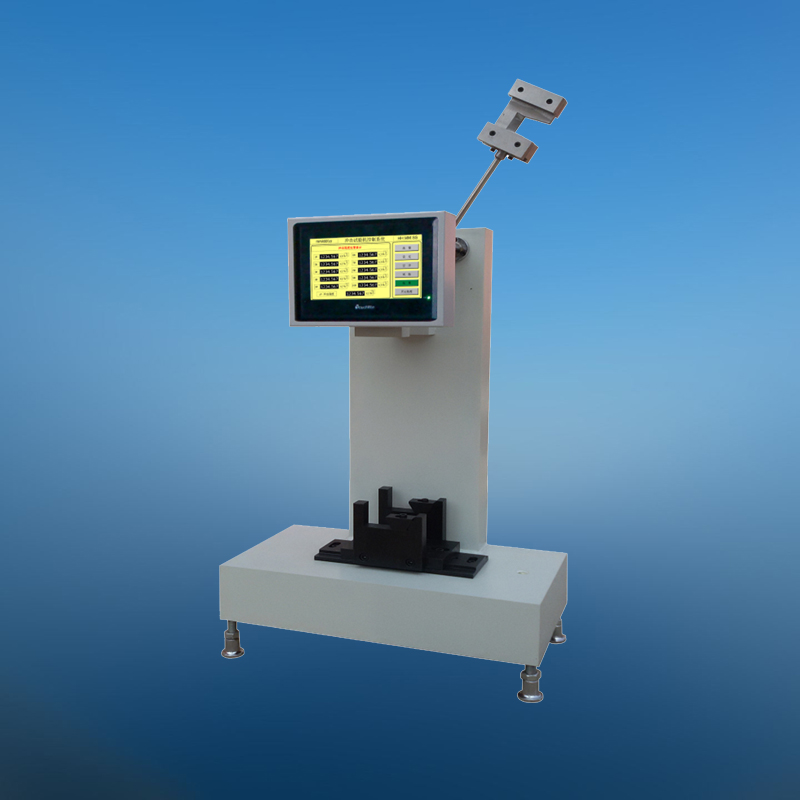

TOUCH SCREEN DIGITAL DISPLAY SIMPLE BEAM CHARPY IMPACT TESTER
Introduction
This
XJJD-5 digital
impact tester is mainly used for the determination of impact
toughness of non-metallic materials such as hard plastics,
reinforced nylon, glass fiber reinforced plastics, ceramics, cast
stone, electrical insulation materials, etc. It is an ideal testing
equipment for chemical industry, scientific research institutions,
colleges and universities, quality testing and other departments.
Characteristic:
-
This series of
impact testing machine is an intelligent digital display impact
testing machine developed and produced by microcomputer
technology. The advantage is that it can automatically correct
the energy loss caused by friction and wind resistance, and get
rid of the numerical chart of energy correction due to the
influence of resistance. (the detection of the residual energy
of the pendulum and the correction of the energy loss after the
fracture of the sample are completed once in the process of
impact).
-
This series of
impact testing machines use LCD touch screen display to display
the test results, which makes the reading more intuitive and
improves the accuracy and accuracy of the impact machine.
-
The main
technical parameters of
XJJD series
simply supported beam impact testing machine fully conform to
the requirements of ISO 179, GB/T 1043, JB/T 8762 standards.
Technical parameters:
|
Impact
speed |
2.9 m/s |
|
Pendulum
energy |
1J, 2J,
4J, 5J |
|
Pendulum
torque |
Pd1＝0.53590Nm
Pd2＝1.07180Nm
Pd4＝2.14359Nm
Pd5＝2.67949Nm |
|
The
distance between pendulum center and sample center |
230mm |
|
Rising angle of the pendulum |
150° |
|
Blade
fillet radius |
R=2±0.5mm |
|
Jaw fillet
radius |
R=1±0.1mm |
|
Impact
blade angle |
30±1° |
|
Energy
loss of pendulum in no-load impact |
1J: 2%,
2J: 1%, 4J, 5J: 0.5% |
|
Distance
between jaw support lines |
40mm, 60mm
(or 62mm), 70mm |
|
Working
temperature |
15℃-35℃ |
|
Power
supply |
AC 220V,
50Hz, single phase |
|
Minimum
indication value of digital display: |
0.001J
(below 5J, including 5J); 0.01J (above 5J) |
|
Sample
notch: |
Type A
notch: 45 ° ± 1 °
notch
bottom radius R = 0.25 ± 0.05mm
Type B
notch: 45 ° ± 1 °
notch
bottom radius R = 1 ± 0.05mm
Type C
notch 1: 2 ± 0.2 right angle notch
Type C
notch 2: 0.8 ± 0.1 right angle notch |
|
Net
weight: |
80kg |
|
Dimension: |
400mm ×
300mm × 650mm |
|
Package
size: |
600mm ×
550mm × 800mm |
Sample type:
|
Sample
type |
Length
L (mm) |
Width
b (mm) |
Thickness
h (mm) |
Distance between jaw support lines |
|
1 |
80±2mm |
10.0±0.5mm |
4±0.2mm |
60 or
62mm |
|
2 |
50±1mm |
6±0.2mm |
4±0.2mm |
40mm |
|
3 |
120±2mm |
15±0.5mm |
10±0.5mm |
70mm |
|
4 |
125±2mm |
13±0.5mm |
13±0.5mm |
95mm |
|
|
