MODEL XHVT-1000 COMPUTERIZED AUTO
TURRET
TOUCH SCREEN DIGITAL DISPLAY MICRO
VICKERS HARDNESS TESTER
Features:
-
The measurement system is integrated with
hardness tester. The hardness tester, computer, built-in 5.0 Mega
pixels high-definition CCD camera and professional software are combined in
a whole machine.
-
Computer controlled hardness tester. Automatic
controlling are available such as measurement starting, brightness
adjustment, and automatic turret rotation etc.
-
The indentation image is clear, automatic/manual
measurement of indentation.
-
Calibration is carried out using a micrometer or
hardness block, which can be automatically calibrated to ensure that the
hardness value meets the requirements more accurately.
-
The lead screw adopts a unique optical cross
guide rail to ensure guiding accuracy. When the test piece is lifted and
lowered, it can better focus on the indentation and maintain the image
position unchanged.
-
Hardness value statistics and hardness exceeding
alarm.
-
It can convert hardness to other
scales according to National and ASTM standards.
-
The test report can be customized by the user,
and all test data can be saved for easy historical query.
-
Precision conforms to GB/T 4340.2, ISO 6507-2
and ASTM E384.
Application:
It can be used to determine the
Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal
surface, and the hardness grads of carburized, nitrided and hardened layers of
metals. It is also suitable to determine the Vickers hardness of micro and super
thin parts.
Technical Specifications:
|
Turret shifting |
Automatic |
|
Test Force |
10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf
(1.96N), 300gf (2.94N), 500gf(4.9N), 1Kgf (9.8N). Optional
2Kgf(19.6N) |
|
Measurement resolution |
0.01μm |
|
Conversion ruler |
Rockwell, Brinell |
|
Hardness test range |
8~2900HV |
|
Test force
application |
Automatic (loading,
dwelling, unloading) |
|
Objective lens |
10X, 40X, both for
measurement (50X optional) |
|
Test force retention
time |
1-99s |
|
Maximum height of test piece |
160mm |
|
Distance from indenter to machine wall |
160mm |
|

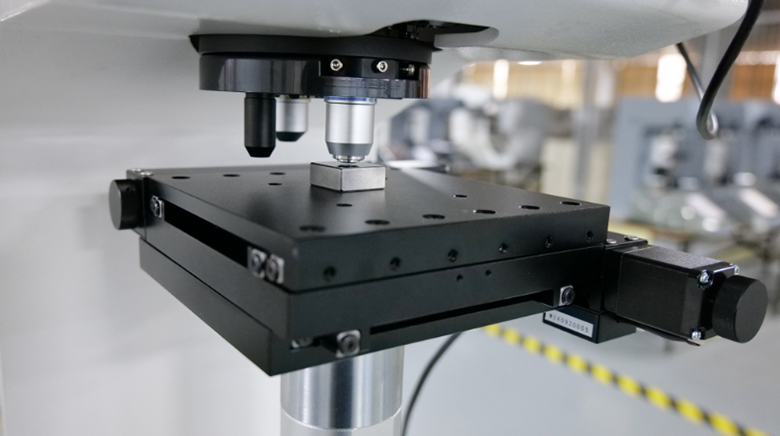

X-Y test table |
Dimensions: 100*100mm Max. movement: 25*25mm |
|
Computer |
11.6” screen;
i5 CPU, 8GB RAM + 128GB solid state drive,
Windows 10 OS, WiFi |
|
Output interface |
USB, VGA, RJ45 |
|
Camera |
5.0 Mega pixels (12.0 Meaga pixels optional) |
|
Power supply |
AC 220V +5%,
50/60Hz,
600W |
|
Dimension (L*W*H) |
540*260*650mm |
|
Weight |
About 50Kg |
Standard Accessories:
|
Name |
Qty. |
Name |
Qty. |
|
Computers
(Built-in, with program
and instruction manual) |
1 |
Spirit level |
1 |
|
Camera (5.0 Mega,
built-in) |
1 |
Screw driver |
2 |
|
Weight shaft |
1 |
Dust cover |
1 |
|
Weights |
6 |
Power cord |
1 |
|
Microhardness blocks
(high, medium) |
1 for each |
Spare fuse (2A) |
2 |
|
X-Y test table |
1 |
Mouse and keyboard |
1 set |
|
Nylon cardan foot |
4 |
Product certificate |
1 copy |
Optional accessories:
|
|
