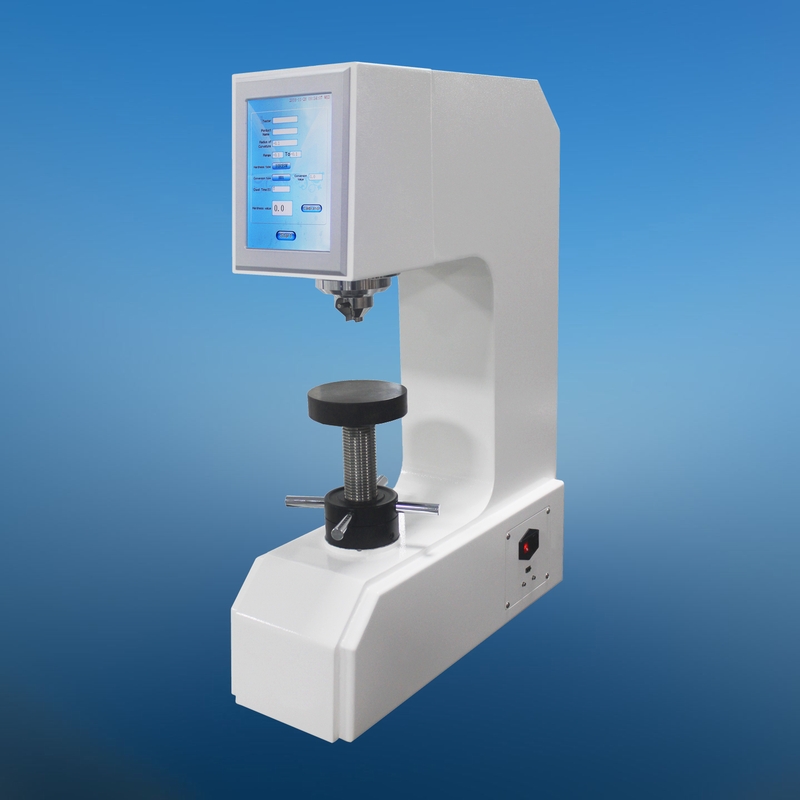

MODEL XHRS-150TE
TOUCH SCREEN DIGITAL DISPLAY PLASTIC ROCKWELL HARDNESS
TESTER
Feature & Use:
-
Electric loading without
weights, closed-loop control, unnecessary for installing weights and
debugging, high precision sensor.
-
8” Large touch screen
interface, easy operation, multi-language versions
-
Choose hardness scale
directly and test load will change automatically in testing parameters
-
All Rockwell scales, total 15
types
-
Automatically apply the
initial load and main load
-
Automatic correction of high,
medium and low hardness values.
-
Automatic correction of load,
with the force accuracy increased by a numerical level
-
Built-in hardness value
correction of convex cylindrical surface.
-
USB interface (or Built-in
printer, RS232 interface are optional) for data output
-
More sample and testing
information. Data stored in USB flash disk, EXCEL format, easy for editing
and processing
-
Powerful data processing
ability. Various hardness conversion including HR, HB, HV etc. Setting
acceptable range, over-limit alert, information input of operator and sample
name, etc.
-
Test results can be stored,
processed and printed automatically.
-
Modular design, easy
maintenance
-
Modern and beautiful
appearance, stable structure
Application:
It’s suitable to determine the
Plastic Rockwell hardness of plastic, composite materials, all kinds of friction
materials, soft metals and non-metal soft materials.
Specifications:
|
Initial load of
Rockwell |
10kgf(98.07N) |
|
Total load of
Rockwell |
60kgf(588N)
100kgf(980N) 150kgf(1471N) |
|
Rockwell Scale |
HRA, HRB, HRC, HRD,
HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
|
|
Hardness testing
range |
HRE:70-100,
HRL:100-120,
HRM:85-110,
HRR:114-125 |
|
Dwell time |
1~99s |
|
Resolution of
hardness value |
0.1HR |
|
Load value error |
＜0.5% |
|
Hardness reading |
LCD display
|
|
Screen size |
8 inch |
|
Data Storage |
Can store 60 kinds of
test results, USB flash disk automatic data storage |
|
Conversion Scale |
Rockwell, Brinell,
Vickers, etc. |
|
Carried Standard |
BSEN 6508, ISO 6508,
ASTM E18, GB/T230 |
|
Max Height of
Specimen |
200mm |
|
Distance of Indenter to outer wall |
200mm |
|
Power supply |
AC 220V/110V,
50/60Hz |
|
Overall Dimension (mm) |
560×200×800mm |
|
Net weight |
65kg |
Operation
Interface:
Main interface
All Rockwell scales, 15 in total
Data storage interface
Automatic correction interface
Standard
Accessories:
|
Name |
Quantity |
Name |
Quantity |
|
Ball Indenter
(3.175mm, 6.35mm, 12.7mm) |
1 for each |
Large, Medium, “V”
shaped Testing Table |
1 for each |
|
Hardness block
(HRE, HRL, HRM, HRR) |
4 |
Plastic Dustproof
cover |
1 |
|
Weights (A, B, C) |
1 for each |
2A Fuse |
1 |
|
Power line |
1 |
Level adjusting bolt |
1 |
|
U-disk, touch pen |
1 for each |
Operation Manual
Product certificate |
1 for each |
|
|
