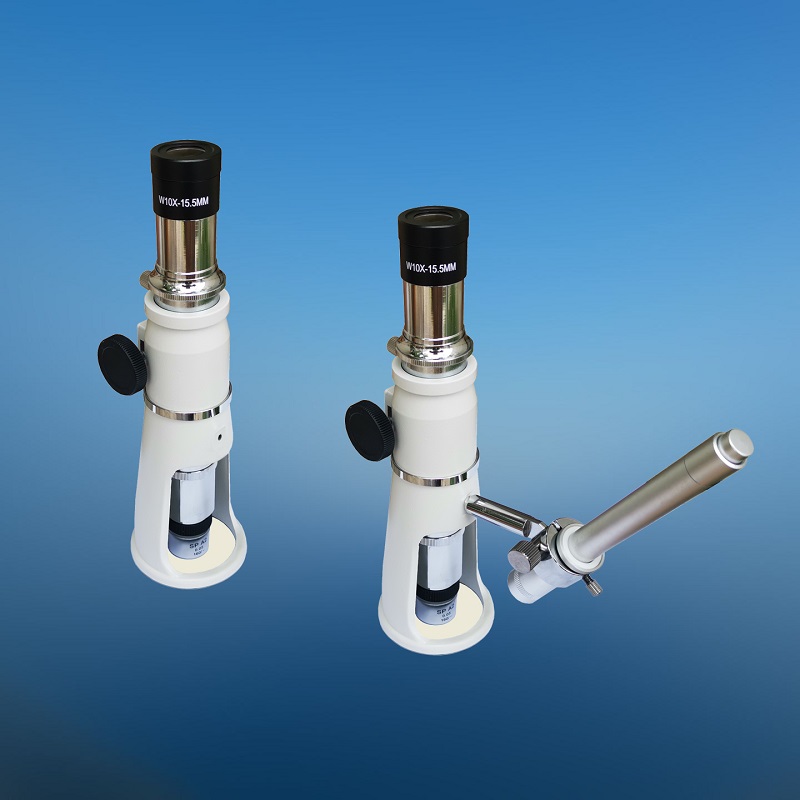

MODEL XC-20, XC-40, XC-50, XC-100 (WITHOUT LIGHT)

MODEL XC-20L, XC-40L, XC-50L, XC-100L (WITH LIGHT)

 PORTABLE MEASURING MICROSCOPE



      These portable measuring microscopes can be widely used in the inspection and measurement of the factory production site and the observation and research of the laboratory, especially in the production site inspection of the mechanical manufacturing industry, the paper manufacturing industry, the printing industry, the textile industry, etc. The product is small in volume, light in weight, novel in shape and easy to operate. It can also be used for students' experiments.



Technical Specifications





Model

XC-100 (L)

XC-50 (L)

XC-40 (L)

XC-20 (L)

Total Magnification

100×

50×

40×

20×

Mechanical Tube Length

160mm

Eyepiece

10×

Objective

10×

Numerical Aperture

0.25

0.12

0.1

0.05

Diameter of Viewing field

in Eyepiece

Φ18mm

Reticule of Eyepiece

0.1mm

Minimum

Readable Division

0.01mm

0.02mm

0.025mm

0.05mm

Working Distance

6.93mm

17.6mm

18mm

17.2mm

Focus Range

30mm

Diameter of Bearing Plane

Φ63mm

Height of Microscope

210mm

Mass of Microscope

650g

Illumination

Pen light, AAA battery 2 pcs.
