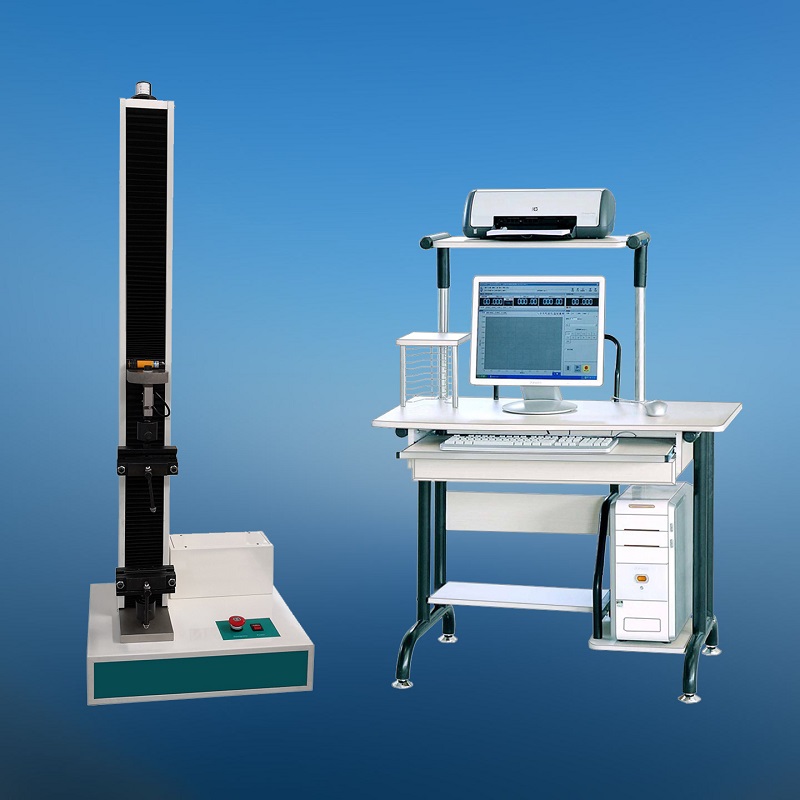

MODEL WDW-01E
/ 02E/ 05E / 1E / 2E / 3E / 5E SERIES
SINGLE COLUMN COMPUTER
CONTROLLED
ELECTRONIC UNIVERSAL TESTING MACHINE
Main application:
WDW-E series
(single
column)
computer controlled
electronic
universal testing machine is mainly used for testing and analyzing the tensile,
compression, bending, shearing, tearing, peeling and other mechanical properties
of non-metallic materials, such as metal wire, rubber plastic, waterproof roll,
wire and cable, chemical fiber textile, etc. according to GB, ISO, JIS, ASTM,
DIN and various standards provided by users.
It is
an ideal testing equipment for scientific research institutes, colleges and
universities, industrial and mining enterprises, technical supervision,
commodity inspection and arbitration departments.
Performance & features:
-
The
main
machine adopts
a single arm structure with high rigidity, and its appearance is exquisite
and beautiful.
-
Imported
high-precision ball screw, high-efficiency and stable transmission.
-
The
transmission part is driven by arc tooth synchronous belt, and there is no
gap in both directions during the transmission process.
-
Adopt
high-precision servo motor and drive system to ensure stable transmission
and precise control.
-
After
special design, the fixture is firmly clamped, easy to operate and free of
jaw slip.
-
Special
process ensures the coaxiality of the testing machine, and eliminates the
influence of irregular sample on the sensor
-
The measurement and control software can record in real
time and dynamically display: force time, deformation time, displacement
time, force deformation, force displacement, stress-strain and other test
curves. It supports multi graph display and can switch to view at any time.
Technical parameters:
|
Model |
WDW-01E |
WDW-02E |
WDW-05E |
WDW-1E |
WDW-2E |
WDW-3E |
WDW-5E |
|
Maximum
force |
100N |
200N |
500N |
1000N |
2000N |
3000N |
5000N |
|
Measuring
range of
force |
0.4%—100%F.S
|
|
Measuring
accuracy of
force |
Better
than ±1% of
indication value |
|
Cross
beam displacement measuring accuracy |
0.0025mm |
|
Speed
control range |
0.01-500mm/min. stepless |
|
Effective test space |
700mm |
|
Working environment |
Room
temperature ~
35℃, relative
humidity no
more than
80% |
|
Power
supply |
Single
phase, 220V±10%, 50Hz
|
|
Dimensions |
530×370×1350mm
|
|
Weight |
140
kg |
|
|
