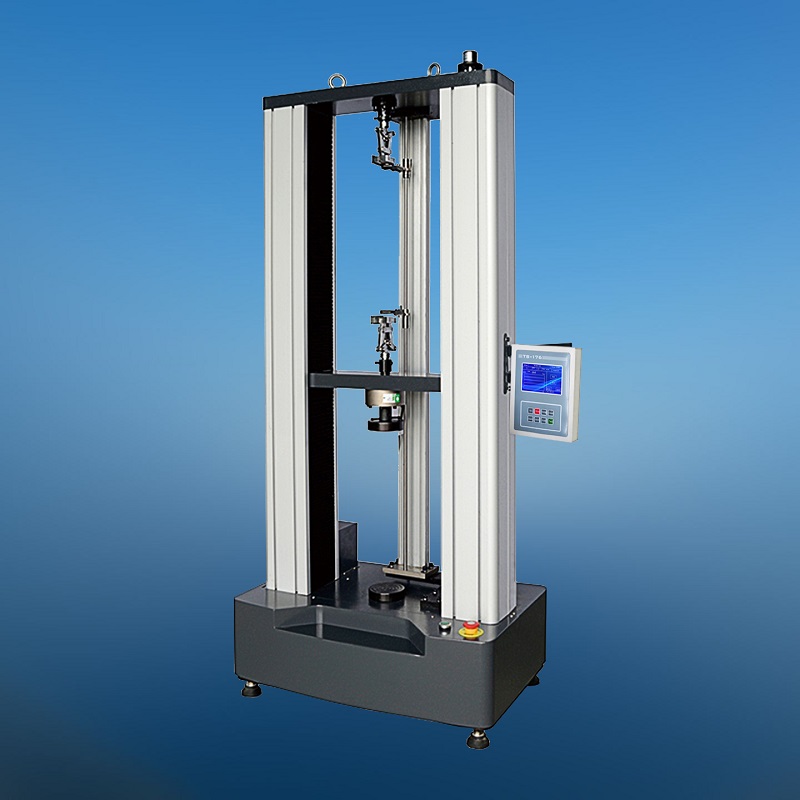

MODEL WDS-20D

DIGITAL DISPLAY ELECTRONIC UNIVERSAL TESTING MACHINE

Application

WDS-20D is widely used in tensile, compression, bending and shear tests of metal and nonmetal materials. With a variety of accessories, it can also be used to test the mechanical properties of profiles and components. It also has a very wide application prospect in the field of rope, belt, wire, rubber, plastic and other materials with large sample deformation and fast test speed. It is suitable for quality supervision, teaching and scientific research, aerospace, iron and steel metallurgy, automobile, construction materials and other experimental fields.

Standards

It meets the requirements of GB/T 228.1-2010 <<Tensile test method for metallic materials at room temperature>> and GB/T 7314-2005 <<Compression test method for metals>>, as well as ISO 7500-1, ASTM E4, EN10002-2, BS 1610, DIN 51221, ISO6892, etc. It conforms to the requirement of data processing of GB, ISO, ASTM, DIN and other standards.

Mechanical part:

The machine adopts electric loading mode, and the bottom is the whole machine structure bearing bracket, which contains motor driver, loading motor, deceleration system, power transmission mechanism and other components;

The upper part is the sample clamping and force value, deformation measurement mechanism, including the loading transmission mechanism, sample tensile fixture, sample compression fixture, force sensor, displacement sensor and other main parts.

Electrical part:

The electrical part consists of display, measurement and control part. The display measurement control part realizes various control, display, data acquisition, processing and other functions. The main controller can select the tensile, stiffness and compression test modes according to different test requirements, and set the sample parameters of each test mode. After adjusting the sample, press the test key, the system can start the test automatically, judge the shutdown process automatically according to the corresponding test conditions, and display the corresponding test results at the same time.

Main functions of the machine:

• Full open parameter setting

• The setting parameters are saved permanently, and the display will be read automatically after the next power on

• Floating zero setting, which can be adjusted at any time

• Peak holding and storage, constant value following

• Within the effective speed range, the speed value can be set arbitrarily

• Speed fast switching function in the process of beam moving

• Flexible data query and display function

• Overload shutdown and audio alarm protection function

• Automatic judgment function at the end of the test

• Limit position protection, etc.

Main technical specifications:

Max Test Load: 20KN

Accuracy level: Level 1 (Level 0.5 optional)

Measurement range of test force: 2% ~ 100% F·S (no grading in the whole scale)

Relative error of indication: ±1%

Relative error of repeatability of test force indication: ≤1%

Relative error of zero point of test force: ±0.1% F·S

Speed range: 0.01 ~ 500mm / min, stepless speed regulation

Tensile space: 800mm (customizable)

Compression space: 800mm

Test width: 400mm

It can be equipped with the fixtures such as tensile, compression, bending, shearing, peeling, tearing, etc.

Overall dimension of main machine: 770 x 500 x 1710 mm

Main machine net weight: 280 KG

System configuration

Main machine frame: 1 set

Motor & driving system: Servo motor, 1 set

Deceleration system: synchronous toothed belt, 1 set

High precision rolling ball screw pair: 2 sets

Load sensor: 20KN, 1 pc.

Attached tools, documents, operation manual, installation manual, etc.: 1 set

Standard accessory:

Aluminum alloy wedge tensile testing attachment: 1 pair

Compression testing attachment: Pressure plate diameter Ф 100mm, 1 pair

Digital display meter: 1 set
