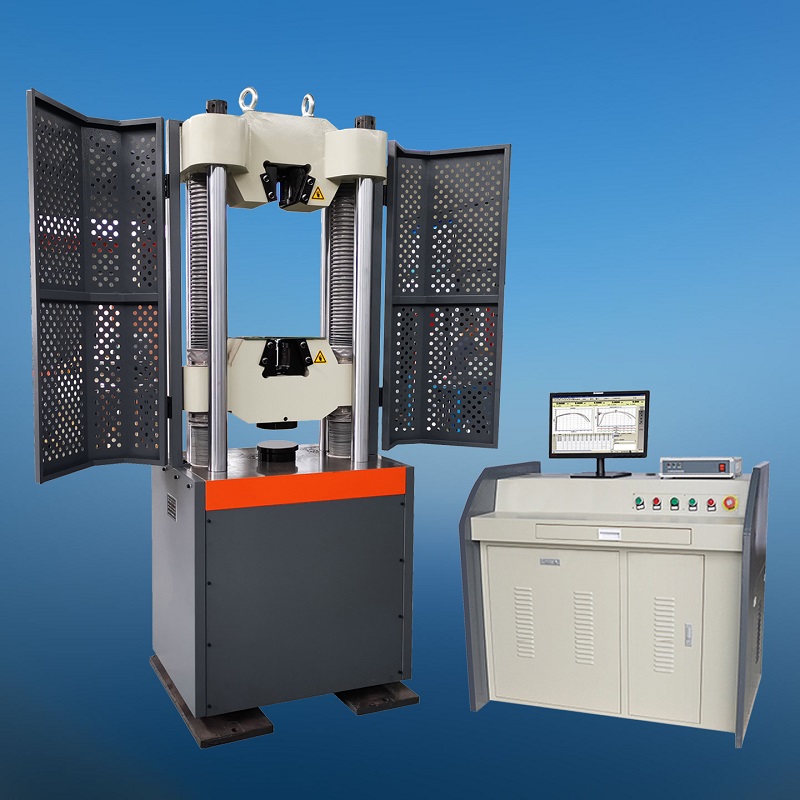

MODEL WAW-600D COMPUTER
CONTROLLED
ELECTRO-HYDRAULIC SERVO
UNIVERSAL
TESTING MACHINE
Application
WAW-600D computer
controlled electro-hydraulic servo universal testing machine adopts oil cylinder
lower type and four column host, which is mainly used for tensile, compression,
bending and shear tests of metal and non-metal. It is suitable for metallurgy,
construction, light industry, aviation, aerospace, materials, colleges and
universities, scientific research institutions and other fields. The test
operation and data processing comply with the requirements of GB/T 228.1-2010
<<Metallic materials-Tensile Testing-Part 1: Method of Test at Room
Temperature>>.
Main Features
-
The main host adopts
the lower type of oil cylinder, the tensile space is located above the main
host, and the compression and bending test space is located between the
lower beam of the main host and
the workbench.
-
The solid structural design of
four columns and two lead screws has strong stability.
-
The oil cylinder adopts clearance
seal, which not only improves the measurement accuracy, but also increases
the service life.
-
Transmission system: the lower
cross beam is driven by motor, cycloidal pin wheel reducer, sprocket and nut
lead screw pair to realize the adjustment of stretching and compression
space.
-
High-pressure gear pump is
adopted with low noise and stable pressure.
-
The integrated design of power
system and console is convenient for operation and saves experimental space.
-
The testing machine adopts
computer controlled full digital wide screen electro-hydraulic digital valve
to drive the precision hydraulic cylinder, automatically control the test
force, displacement and deformation in various modes, and complete the
tensile, compression and compression tests of the samples.
-
Brand computer is used to
complete parameter setting, control, data acquisition, processing, analysis,
storage and display (test data include: material tensile strength, elastic
die, elongation, yield strength, specified plastic elongation strength,
etc.), control and measurement are precise and accurate.
-
Part of the surface of
machine is
sprayed with plastic, and the appearance is beautiful.
Main technical specifications:
-
Max. Test load: 600KN
-
Max. Tensile testing space: 600mm
-
Compression testing space: 500mm
-
Piston travel: 200mm
-
Distance between columns: 490mm
-
Clamping range of round specimen: Φ6-Φ13mm,
Φ13-Φ26mm, Φ26-Φ40mm
-
Clamping thickness of flat specimen: 0-15mm,
15-30mm
-
Max. clamping width of flat specimen: 80mm
-
Pressing plate size:
Φ160mm
-
Maximum distance between two points of bending
fulcrum: 380mm
-
Bending roll width: 140mm
-
Clamping means: Hydraulic clamping
-
Dimensions
: 840*700*2200mm
-
Motor power: 0.75KW
-
Weight: 1860KG
-
Hydraulic station weight: 300KG
|
|
