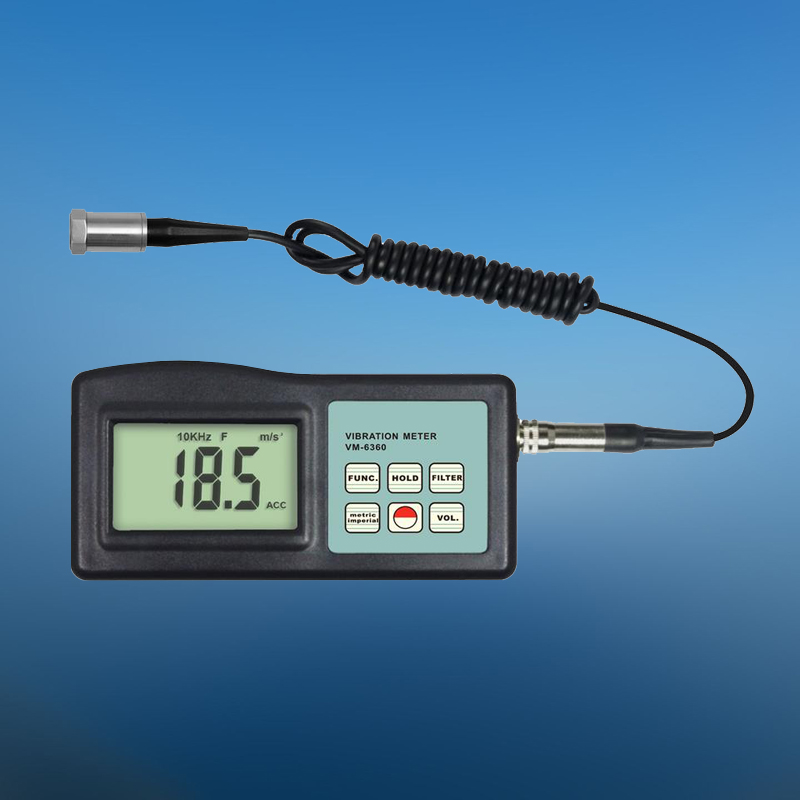

MODEL VM-6360 VIBRATION METER
Application:
This vibration meter is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. It is specifically designed for present measuring various mechanical vibration so as to provide the data for the quality control, run time and equipment upkeep. It uses the high-performance acceleration meter, realizes the repetitiveness and accurate measurement. It has the function of testing axle bearing situation.
Specifications:
Acceleration: P 10Hz-1KHz 0.1-400m/msē 0.3-1312ft/msē 10Hz-10KHz 0.1-400m/msē 0.3-1312ft/msē Velocity: P-P 10Hz-1K 0.1-400mm/s 0.004-16.0inch Displacement: rms 10Hz-1KHz 0.001-4.0mm 0.04-160 mil Accuracy: ＜5% Auto power off RPM (revolution): 5-100000r/min Frequency: 0.1 to 10KHz Metric/imperial conversion With RS232C interface Max hold Operating conditions: 0-+45℃(32℉-104℉),≤90%RH Power supply: 4x1.5V AAA(UM-4)battery Battery indicator: low battery indicator Dimensions: 124 x 62 x 30mm Weight: 120g (not including battery)
Optional accessories:
RS-232C cable & software:
1. USB adaptor for RS-232C
|
||||
