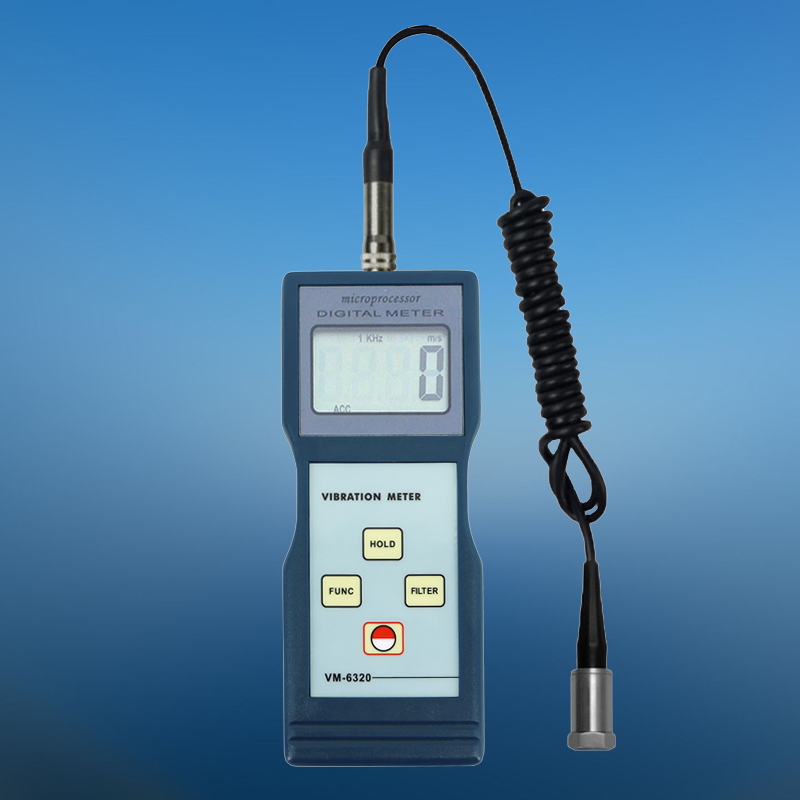

MODEL VM-6320 VIBRATION METER
Application:
This vibration meter is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. It is specifically designed for present measuring various mechanical vibration so as to provide the data for the quality control, run time and equipment upkeep. It uses the high-performance acceleration meter, realizes the repetitiveness and accurate measurement. It has the function of testing axle bearing situation.
Specifications: Acceleration: P 0.1-200m2/s (10Hz to 1KHz 10Hz to 10KHz ) Velocity: P-P 0.1-200mm/s (10Hz to 1KHz) Displacement: rms 0.001-2.0mm (10Hz to 1KHz) Accuracy: ＜5﹪ Auto power off Max hold Operating conditions: 0-+40℃(32℉-104℉), ≤90%RH Power supply: 4x1.5V AA (UM-3 )battery Battery indicator: low battery indicator Dimensions: 160 x 68 x 32mm Weight: 181g (not including battery)
|
||||
