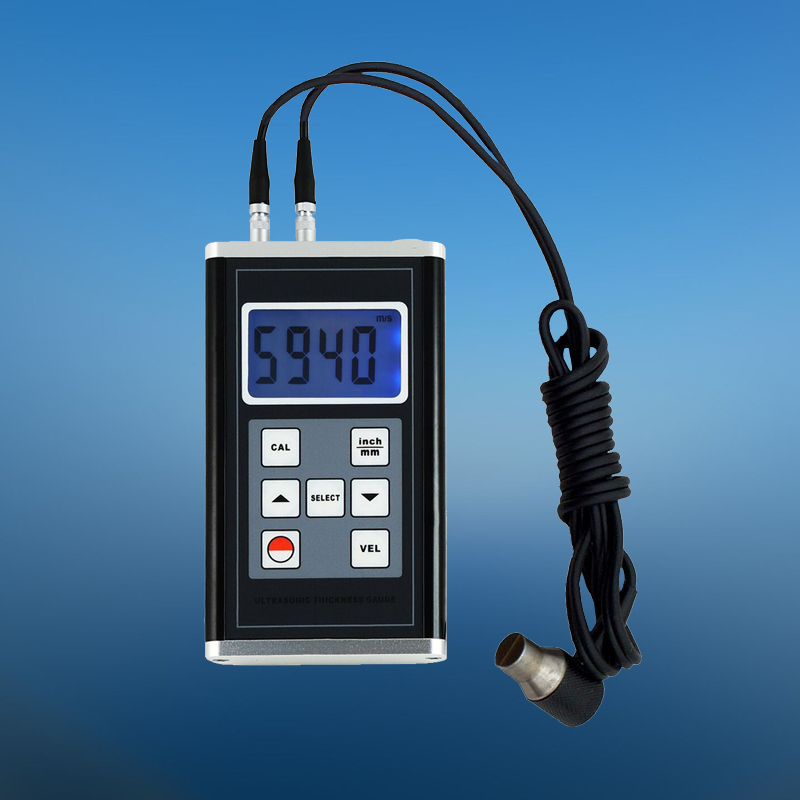

MODEL TM-8818 ULTRASONIC THICKNESS GAUGE
Application:
This thickness gauge is sed for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, ship building, power station, and machine manufacturing.
Features:
Specifications:
Case Material: Aluminum Alloy Display: 4-Digit LCD Operating Principle: Ultrasonic Measuring Range (metric / Imperial): 0.9~400 mm ( 45 # steel ) Battery Indication: Low Battery Indication Sound Velocity: 1000~9000 m/s Lower Limit Steel Pipes: Φ20 x 3.0 mm Calibration Block: Included Resolution: 0.01 mm / 0.1 mm Accuracy: ± (0.5%n + 0.1) Automatic memory material code and the value of sound velocity Power off: Auto Power off & Manual Power Off Operating Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH Power Supply: 2 x 1.5 V AA (UM-3) Battery Dimensions : 130 x 76 x 31 mm Weight: 340 g (Not Including Batteries)
Standard Accessories:
Main machine: 1 set 5M Ф8mm probe: 1 pc. Bonder: 1 pc. Operation manual: 1 pc. Portable box: 1 pc.
Optional Accessories:
6M Φ6 mm thin Material Probe: Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C Curved Surface Probe USB, RS-232C data cable with software Bluetooth data output with software
|
||||
