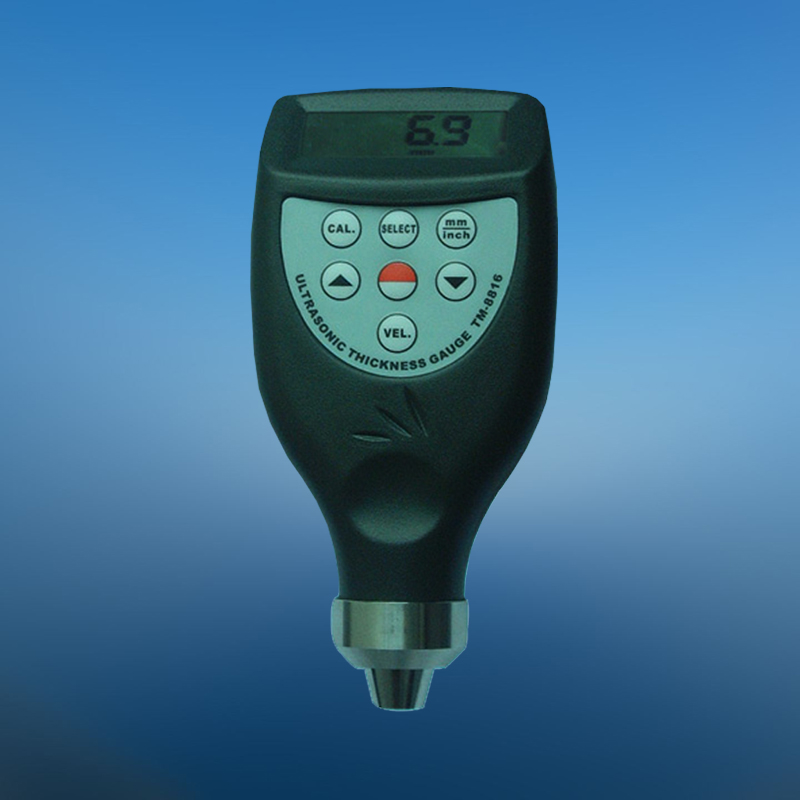

MODEL TM-8816 ULTRASONIC THICKNESS GAUGE
Application:
This thickness meter is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Specification:
Model: TM8816 / TM8816C Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch Operating principle: ULTROSONIC Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials Sound velocity: 500-9000m/s Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer Calibration block: included Resolution: 0.1mm (TM8816C 0.01mm) Accuracy: ± (0.5%n+0.1) RS232C interface: with RS232C Power supply: 4x1.5V AAA (UM-4) battery Battery indicator: low battery indicator
Standard Accessories:
Main machine: 1 set 5M Ф8mm probe: 1 pc. Bonder: 1 pc. Operation manual: 1 pc. Portable box: 1 pc.
Optional Accessories:
RS232 cable and software Blue tooth communication and software
|
||||
