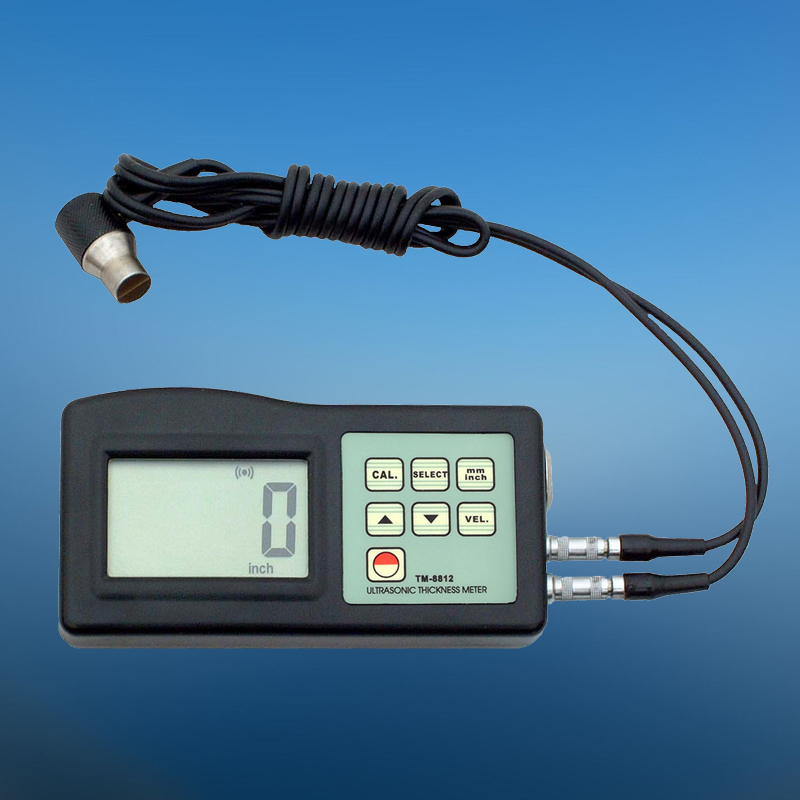

MODEL TM-8812 (TM-8812C) ULTRASONIC THICKNESS GAUGE
Application:
This thickness meter is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Specifications
Model: TM8812 / TM8812C Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch Operating principle: ULTRASONIC Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials Sound velocity: 500-9000m/s Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer Calibration block: included Resolution: 0.1mm (TM8812C 0.01mm) Accuracy: ± (0.5%n+0.1) RS232C interface: with RS232C Power supply: 4x1.5V AA (UM-4) battery Battery indicator: low battery indicator Operating conditions: 0-+45℃ (32℉-104℉), ≤90%RH
Dimensions: 120x62x30mm
Standard Accessories:
Main machine: 1 set 5M Ф8mm probe: 1 pc. Bonder: 1 pc. Operation manual: 1 pc. Portable box: 1 pc.
Optional Accessories:
6MФ6mm thin Material probe: Measuring range (steel): 1.0 50.0mm Operating temperature: -10~+60℃
5MФ12mm high temperature probe: Measuring range (steel): 1.0~225.0mm (normal temperature) Measuring range (steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300℃
|
||||
