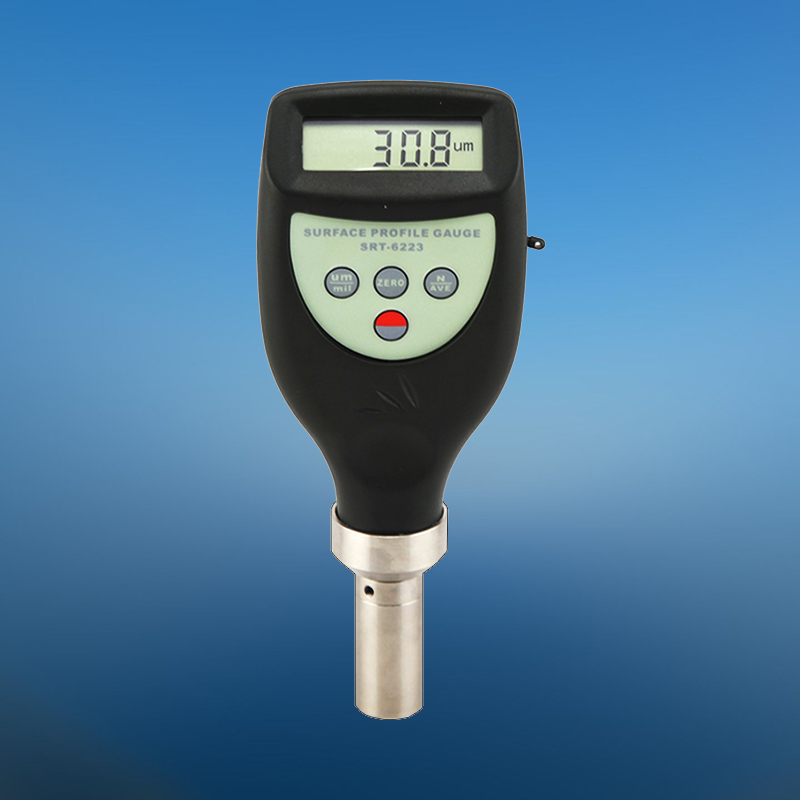

MODEL SRT-6223 SURFACE PROFILE GAUGE
Applications:
This tester is specially used to take accurate measurement of the peak-to-valley height of the surface profile of the surface profile of blast cleaned surfaces.
Specifications:
Display: 4 digits, LCD Range: 0 μm to 800 μm (0 mils to 30 mils) Accuracy: ±5% or ±5 μm, (whichever is the greater) Resolution: 1 μm (0.1 mils) Metric and Imperial switchable PC interface: RS232C Measurement speed: >30 readings per minute Weight: 280 g Dimensions: 162 x 65x 28 mm (6.4 x 2.6 x 1.1 inch) Operating temperature: 0°C to 50°C, <80%RH Case: High impact ABS Batteries: 4 x 1.5v (AAA) battery
Standard accessories:
Carrying case: 1 pc. Operation manual: 1 pc.
Optional accessory:
Cable and software for RS232C
|
||||
