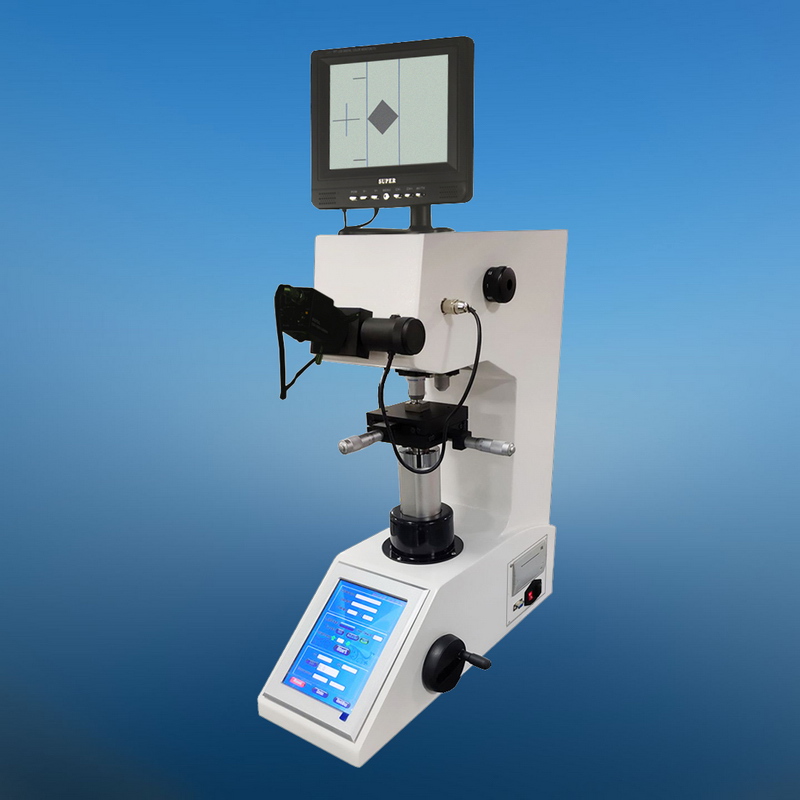

MODEL SP-5A VICKERS VIDEO MEASURING APPARATUS



Feature & Use:

  • Direct indentation image display on LCD and direct hardness measurement through LCD screen.

  • Double functions are optional for measuring microscope.

  • SP-5A can be mounted onto Vickers and micro-Vickers series hardness testers



     SP-5A is designed on the basis of traditional measuring microscope. It adds optical measuring components, CCD measuring components, 8" colorful LCD display components to microscope, and it can help to display the indentation image on LCD and make hardness test directly. In this way, the human error caused by long time eye viewing through microscope can be reduced. It is especially the ideal means for multiple persons to measure at the same time. It can be widely applied in constitutes, research dept. and factories.



Specifications



   Measuring range:  Combined with 40X objective lens: 0.8 mm

                                 Combined with 10X objective lens: 1 mm

   Optical system:    Total magnification: 100X and 400X (measurement)

   CCD input voltage: DC12V±10%

   LCD screen size: 8”

LCD Input voltage: DC12V±10%

   Voltage stabilizer input voltage: 220V, 50Hz

   Power consumption: ≤20W

   Dimensions: Ф50×100mm

   Weight: 0.5 kg
