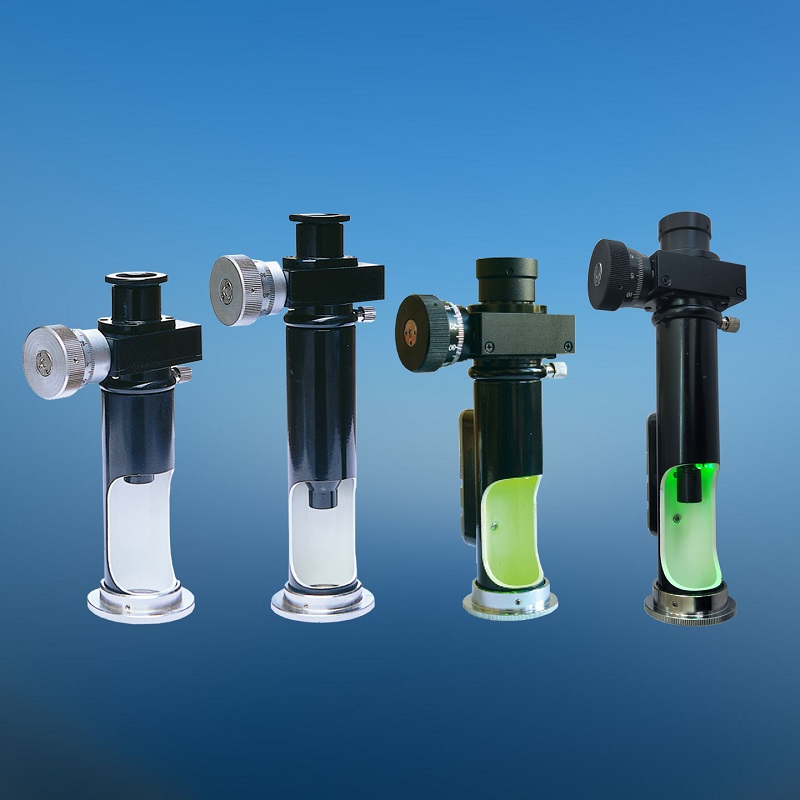

READOUT MICROSCOPE (WITH / WITHOUT LIGHT SOURCE)



Feature & Use



  • Precise measurement for the diameter of indentation in Brinell hardness testing.

  • Determining the width and length of scale mark, slit, key slot and dent, etc.

  • Checking the metal surface quality, density of fibre and field specimens, etc.

  • Built-in light source is optional for each model



Specifications



Model (With/without light source)

JC10 (JC10L)

JC5 (JC5L)

Specifications

Magnification

20X

40X

Effective field view range (mm)

6

3

Min. Scale Value (mm)

0.01

0.005

Dimensions (mm)

70 x 50 x 155

70 x 50 x 187

Weight (kg)

0.5

0.6
