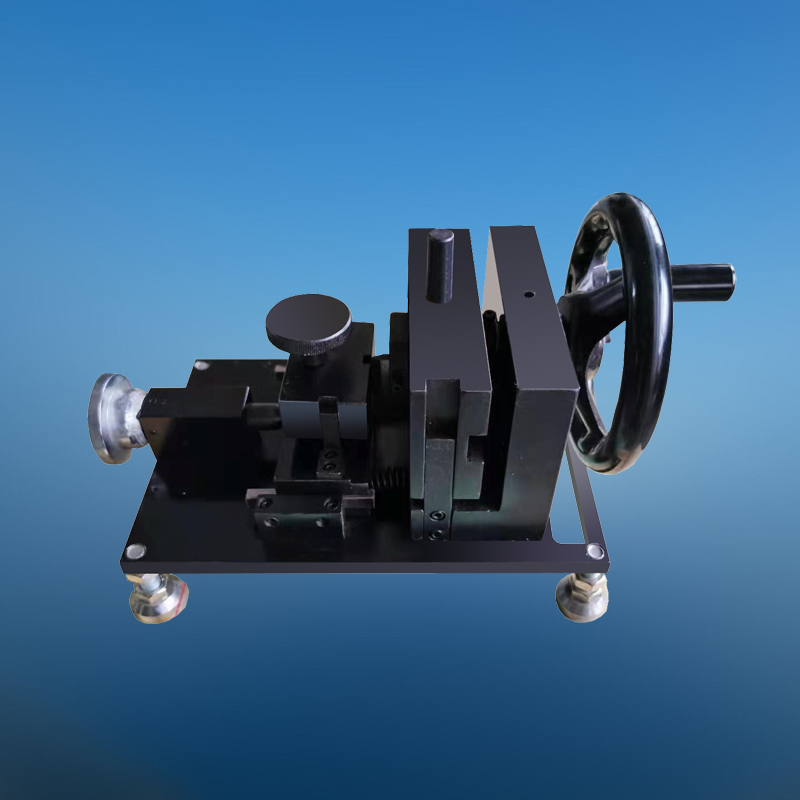

MODEL QK-20 MANUAL IMPACT SPECIMEN NOTCH BROACHING MACHINE



Overview:



      Model QK-20 impact specimen notch broaching machine is mainly used for impact test of simply supported beam and cantilever beam impact testers, for processing the standard specimen of plastic, plexiglass and other non-metallic materials. It meets the standards of ISO179, ISO180, GB/T1043, GB/T1843, GB/T8814, etc.



Technical parameters

  • Notch milling tool length: 60 mm

  • Maximum milling thickness: 20mm

  • Dimensions: 400 x 250 x 300 mm

  • Weight: 20Kg

  • Standard sample:

  • Type A: 45°± 1 °, R=0.25 ± 0.025mm

  • Type B: 45 °± 1 °, R=1.0 ± 0.025mm

  • Type C: 45 °± 1 °, R=0.1 ± 0.025mm
