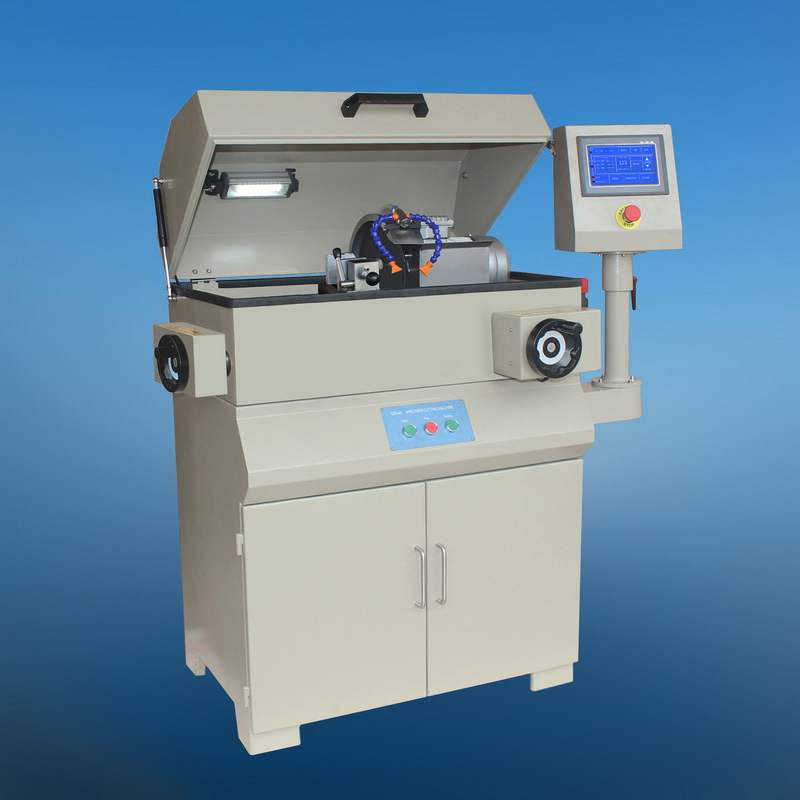

MODEL QG-4T MULTIFUNCTIONAL

MANUAL / AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE

        QG-4T Automatic cutting machine is used for cutting the metallographic specimens with irregular shapes such as cylinder, polygon etc., so as to observe the metallographic and lithofacies structure of the material. It adopts the fully-sealed structure with protective shield, which can guarantee the safety of operator. The cooling system with good coolant can take away the heat of cutting so as to protect the structure of specimen from being burned. This machine, featuring convenient operation and reliable safety, is the necessary equipment for specimen preparation in laboratories, college researching institutes and factories.

Features

• Worktable can be moved in transverse direction by handweel or automatically

• Motor and cutting disc can be moved in Longitudinal direction by handwheel or automatically

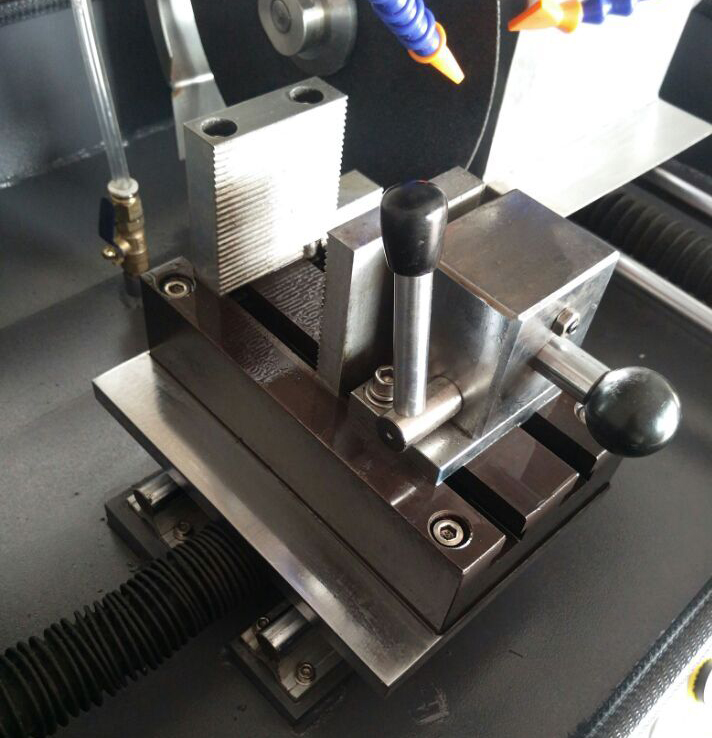

• Equipped with quick clamping vice

• Equipped with lighting system and water cooling system

• Automatic safety protection of machine shield cover

Technical specifications

Max cutting diameter: 65mm

Rotating speed of cutting disc: 2800 rpm

Size of cutting disc: 250×2×32mm

Longitudinal moving travel (Y-axis): 120mm

Transverse moving travel (X-axis): 90mm

X-axis rotation: Positive or inverse rotation

Power supply: 380V, 50Hz, three phases

Motor: 1.5 KW

Net weight: 240 Kg

Dimensions: 119×79×133 cm
