MODEL QG-4A MULTIFUNCTIONAL

MANUAL METALLOGRAPHIC SPECIMEN CUTTING MACHINE

       QG-4A cutting machine is used to cut the metallographic specimens with irregular shapes such as cylinder, polygon etc., so as to observe the metallographic and lithofacies structure of the material. It adopts the fully-sealed structure with double shields, which can guarantee the safety of operator. The cooling system with good coolant can take away the heat of cutting so as to protect the structure of specimen from being burned. During cutting, the specimen can be adjusted in any angles, which helps to avoid the minor burning when the specimen is cut to fall. At the same time the cutting cross section is increased, thus the utilization ratio of cutting sand wheel is improved. This machine, featuring convenient operation and reliable safety, is the necessary equipment for specimen preparation in laboratories, college researching institutes and factories.

Features

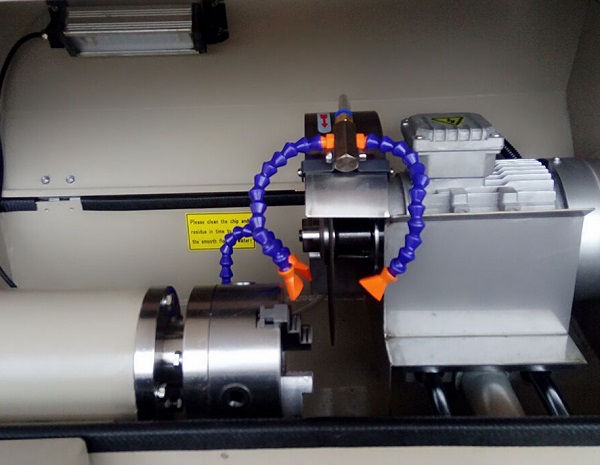

• Chuck can be rotated by handwheel so as to adjust the cutting angle of specimen

• Chuck can be moved in transverse direction by handweel

• Motor and cutting disc can be moved in Longitudinal direction by handwheel

• Equipped with lighting system and water cooling system

• Automatic safety protection of machine shield cover

Technical specifications

Max. Cutting diameter: Ø 65mm

Rotating speed: 2800 rpm

Diameter of cutting disc: 250 x 2 x 32 mm

Longitudinal moving travel (Y-axis): 120mm

Transverse moving travel (X-axis): 90mm

X-axis rotation: Positive or inverse rotation

Power supply: three phases, 380V, 50Hz

Motor: 1.5 KW

Dimensions: 87 × 55 × 112 cm

Net weight: 190 KG
