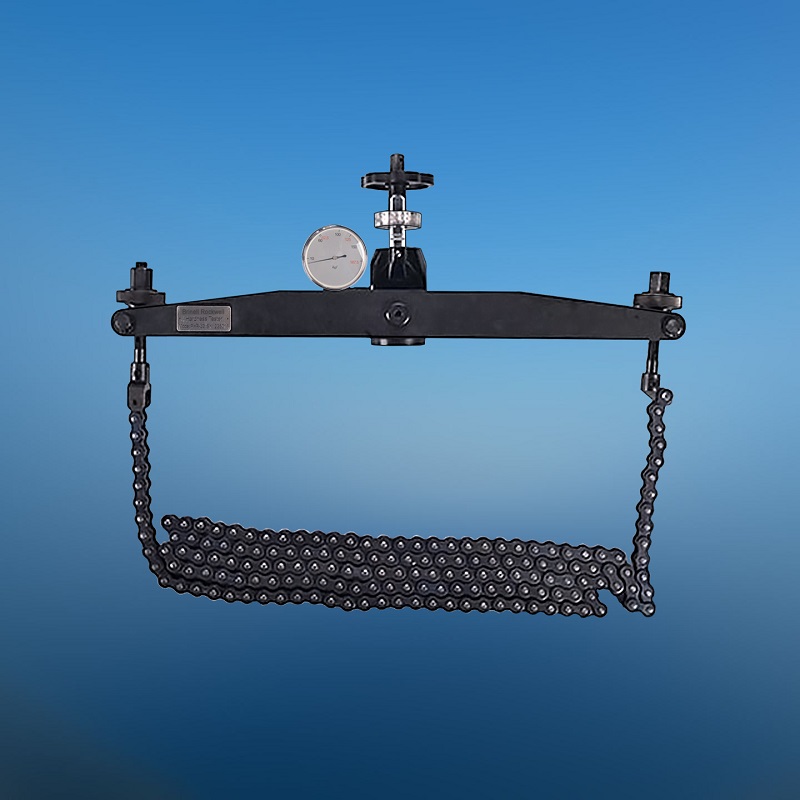

MODEL PHBR-32

CHAIN CLAMP PORTABLE BRINELL & ROCKWELL HARDNESS TESTER



      PHBR series Chain Clamp Brinell & Rockwell Hardness Tester are designed and developed based on the PHR series Rockwell Hardness testers and follows the test method of the Brinell and Rockwell hardness test and function as both Brinell & Rockwell hardness tester, which can tests accurately the castings, forgings, steels and nonferrous metal and work pieces made of all kinds of metal materials under kinds of heat treatment on-site. The test principle and accuracy comply to standard ISO 6506, 6508 and ASTM E110. So it is usually Used for manufacturing inspection and acceptance inspection to replace Leeb hardness tester with lower accuracy.



Feature & Use

  • On-site Testing: Testing the hardness of large pipes and shafts accurately on-site.

  • Anvils: Testing various dimensions and shapes work piece by using different anvils.

  • Application: Chain fastened around the work piece before the force is applied.

  • Brinell and Rockwell combination: Combined Brinell and Rockwell test functions in one instrument.

  • Test principle: Test method follows Brinell and Rockwell hardness test and accuracy in accordance with ISO 6506, 6508 and ASTM E10, E18.

  • High reliability: Traceable standard hardness blocks and traceable test force.

  • Indenter is inspected with standard Rockwell hardness tester.



Specifications



Specimen size: 400 ~ 800mm

Rockwell Initial Test Force: 10kgf

Rockwell Total Test Force: 60kgf, 100kgf, 150kgf

Brinell Test Force: 62.5kgf, 125kgf, 187.5kgf

Force Applying Method: By Screw

Indenter: 120° diamond cone, Ф1.588mm carbide ball, Ф2.5mm, Ф5.0mm carbide ball

Accuracy: Meets the requirements of ISO 6506, 6508, ASTM E110

Resolution: 0.5HR, 0.01mm for Brinell hardness (indentation diameter)

Testing Range: HRA, HRB, HRC, etc. 15 scales, Brinell hardness 8-650HBW

Application: Rockwell used for all metals including iron, steel copper, aluminium, etc.



Standard accessories



Flat test anvil: 1 pc.

V-notch anvil: 1 pc.

120 degree Diamond cone penetrator: 1 pc

1/16” Tungsten carbide penetrator: 1 pc.

2.5mm Brinell penetrator: 1 pc.

5mm Brinell penetrator: 1 pc.

40X Readout microscope: 1 pc.

Rockwell standardized block: 3 pcs.

Brinell standardized block: 1 pc.

Magnifier: 2 pcs.

Wrench: 1 pc.
