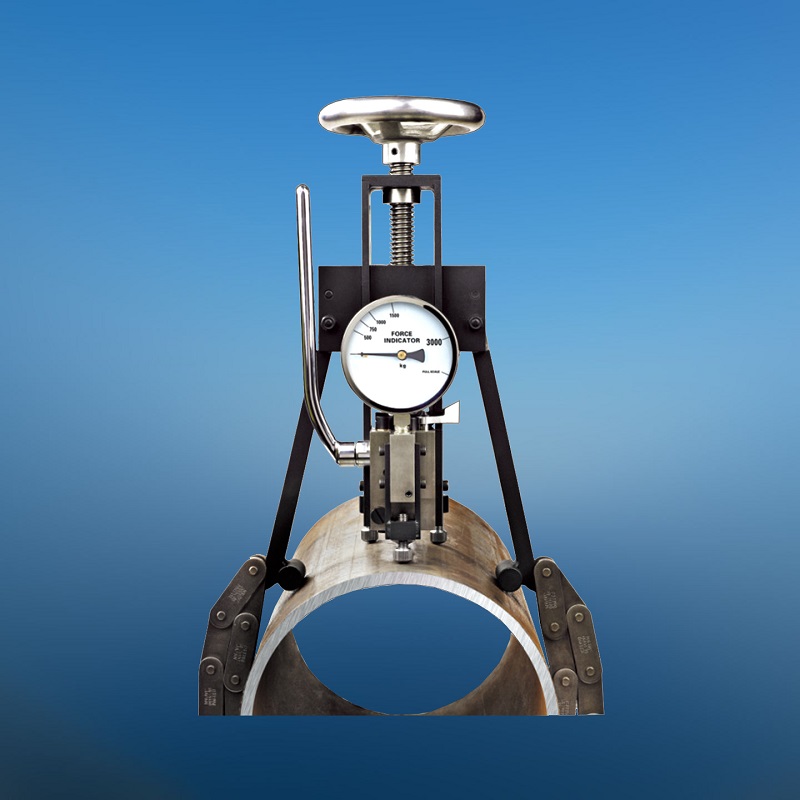

MODEL PHB-3000A

CHAIN CLAMP HYDRAULIC TYPE BRINELL HARDNESS TESTER

      PHB-3000A Hardness Tester adopts hydraulic principle and applies 3000kgf test force by hand operation. Install the testing head into the chain adaptor, when testing, using the chain to fix the tester on the surface of the work piece. And then handle the pressure lever to apply test force. The testing head is a small hydraulic system in which a release valve is used to control the test force. When the test force rises 3000kgf, the release valve will open and pressure will fall down, and it needs to apply the test force repeatedly 3-4 times to make the needle of the pressure gage point to 3000kgf for 3-4 times. Thus it is equivalent to the test condition of Brinell hardness testing method to hold 3000kgf test force with 10mm ball for 10-15 seconds, which complies with ASTM E110.

Feature & Use

• On-site testing: It is a kind of Brinell hardness tester portably used in workshop, simple operation, easy carrying, and testing ontic hardness of large and cylindrical parts.

• Permanent indentation: By 3000kgf and 10mm ball, the indentation is permanent for re-inspection.

• High reliability: It follows the Brinell hardness test method completely, the same as desk testers, reflecting the actual mechanical property of material or parts.

• The test force accuracy complies with relevant national and international standards, such as ISO 6506, ASTM E110, the same accuracy as desk tester.

Specifications

Test Force: 3000kgf (1000kgf, 750kgf, 500kgf optional)

Test Ball: 10mm Carbide alloy test ball (5mm optional)

Test Range: 32-650HBW

Test Diameter: ≤500mm

Indicator Error: Complies with ISO 6506, and ASTM E10

Repeatability Error: Complies with ISO 6506, and ASTM E10

Test Force Error: ≤1% and Complies with ISO 6506, and ASTM E10

Weight: 14.5kg

Standard accessories

10mm carbide ball indenter: 1 pc.

Load handle: 1 pc.

Standard Brinell hardness block (high value): 1 pc.

Standard Brinell hardness block (low value): 1 pc.

Chain measuring frame: 1 set

1.3m Chain: 1 pc.

Hexagonal wrench: 1 pc.

Reading Microscope 20x: 1 pc.
