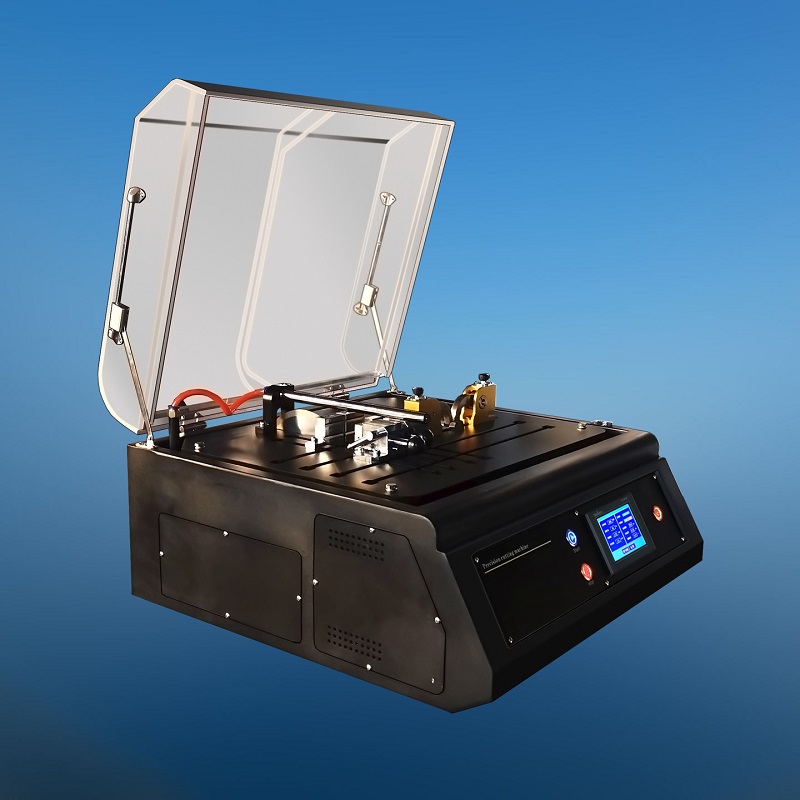

MODEL PBQ-200A

PRECISION METALLOGRAPHIC PLATE SPECIMEN CUTTING MACHINE

      This PBQ-200A metallographic precision plate cutting machine is suitable for cutting samples of semiconductors, crystals, circuit boards, fasteners, metal materials, rocks and ceramics. It is a high-quality precision cutting machine suitable for scientific research institutions and enterprises.

Features

• The whole machine body is smooth, spacious and generous, providing a good working platform.

• It adopts high torque and high power servo motor and stepless variable speed control system, which has high efficiency and stability.

• Good visibility and cutting ability, minimize the difficulty of operation and easy to use.

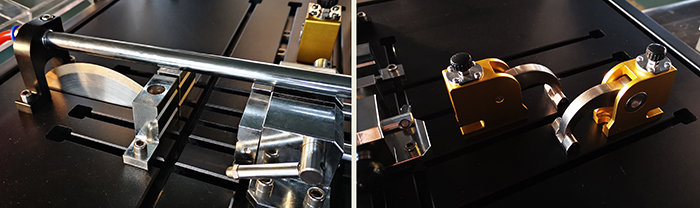

• The machine is equipped with a variety of different fixtures, which can cut irregular shaped workpieces.

Technical specifications

Diamond cutting disc: 200 x 0.9 x 32mm

Y-axis travel: 160mm

Cutting method: linear, pulse

Main shaft rotating speed: 500-3000 rpm adjustable (or customized)

Automatic cutting speed: 0.01-3mm/s

Manual cutting speed: 0.01-15mm/s

Impact cutting speed: 0.1-2mm/s

Maximum cutting thickness: 40mm

Maximum clamping length of worktable: 415mm

Maximum clamping width of worktable: 200mm

Display: 5” touch screen, integrated control

Operation method data: 10 groups

Worktable size: 500 x 585mm

Motor power: 600W

Power supply: Single phase, 220V, 50Hz.

Dimensions: 600 × 530 × 410mm

Net weight: 85 Kg
