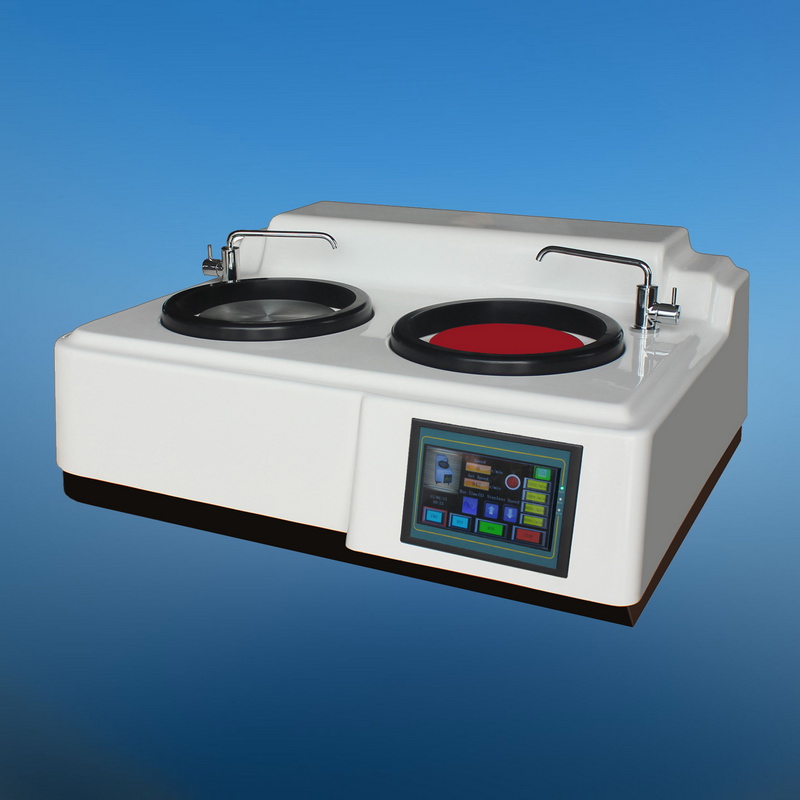

MODEL MP-2S

METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE

　    MP-2S is a newly designed touch screen type metallographic specimen grinding and polishing machine which is equipped with double discs and features stepless speed changing. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Main features

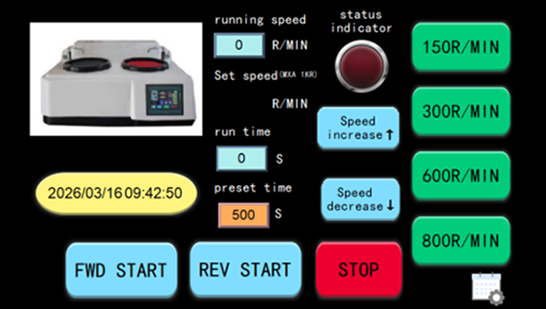

• Touch type LCD screen operation. Rotating speed is displayed on LCD directly.

• Grinding and polishing time is adjustable from 0 to 1000 seconds

• There are two working conditions for this model: the stepless speed changing status or four-level constant speed status. The working condition can be switched from one to another easily.

• The rotating direction of working disc can be chosen at will.

• Four-level constant speed: 150, 300, 600, 800 rpm.

• Stepless speed changing from 50 to 1000 rpm.

• This model is designed and manufactured as per international advanced specimen preparing technology.

• Equipped with beautiful appearance machine shell and stainless steel parts which never rust.

Technical specifications

Rotating speed of working disc: 50-1000 rpm (stepless speed changing)

                                                   or 150 / 300 / 600 / 800 rpm (four-level constant speed)

Diameter of working disc: 200mm / 250mm

Power supply: Single phase, 220V, 50Hz
Motor power: YSS7124, 550W

Dimensions: 870 x 760 x 560 mm

Net weight: 45 Kg
