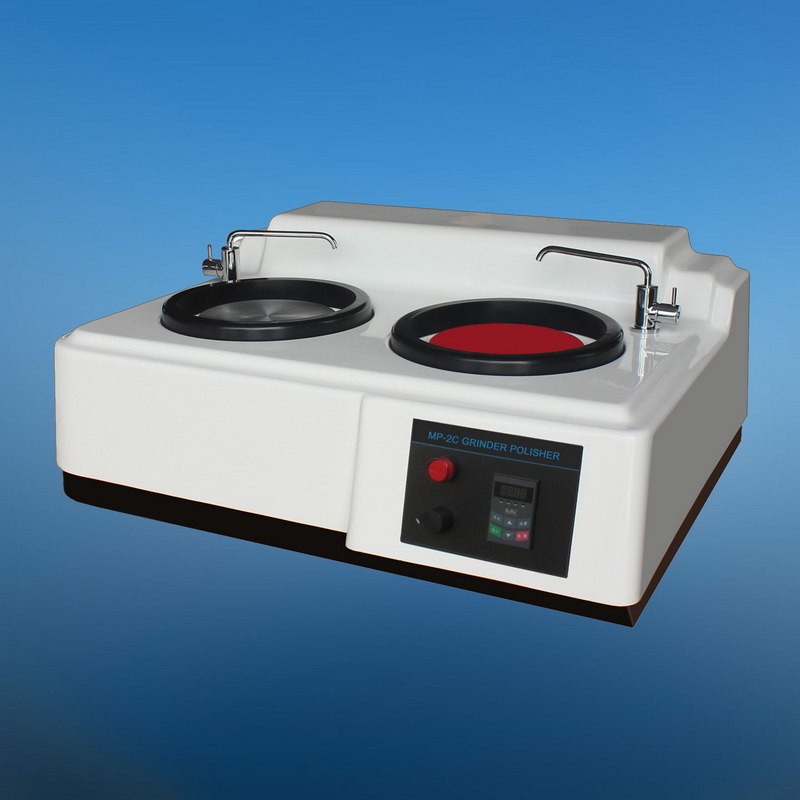

MODEL MP-2C

METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE

　    MP-2C is equipped with double discs and features stepless speed changing. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Main features

• Stepless speed changing from 50 to 1000 rpm.

• This model is designed and manufactured as per international advanced specimen preparing technology.

• Equipped with beautiful appearance machine shell and stainless steel parts which never rust.

Technical specifications

Rotating speed of working disc: 50-1000 rpm (stepless speed changing)

Diameter of grinding disc: 230mm

Diameter of polishing disc: 200mm

Diameter of abrasive paper: 200mm

Power supply: Single phase, 220V, 50Hz
Motor power: YSS7124, 550W

Dimensions: 870 x 760 x 370 mm

Net weight: 56 Kg
