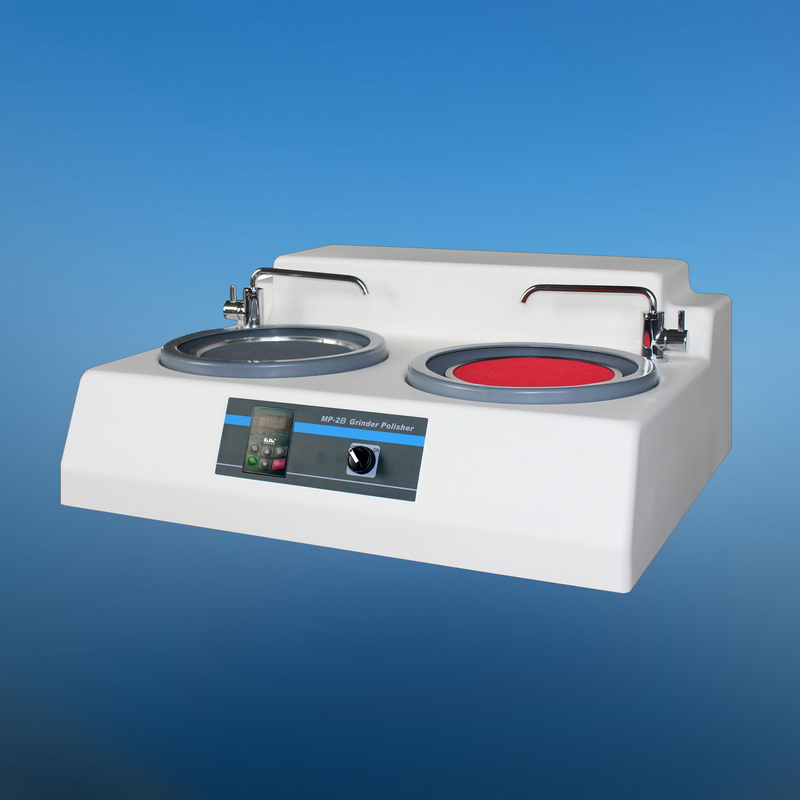

MODEL MP-2B

METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE



      Model MP-2B Metallographic specimen grinding & polishing machine is equipped with double discs and features stepless speed changing grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. By adjusting the transducer, it can realize the rotating speed of grinding and polishing disc adjustable from 50 to 1000 rpm. This bring this machine with much more extensive applying and make it become the necessary metallographic specimen preparing instrument for using in  factories, scientific research institutes and laboratories of colleges.



Technical specifications



Digital display of rotating speeds of grinding and polishing discs

Diameter of grinding disc: Ø230mm, rotating speed 50-1000 rpm

Diameter of polishing disc: Ø200mm, rotating speed 50-1000 rpm

Diameter of sand paper: Ø200mm

Motor: 550W

Power supply: Single phase, 220V, 50Hz

Dimensions: 70 × 60 × 28 cm

Net weight: 43 Kg
