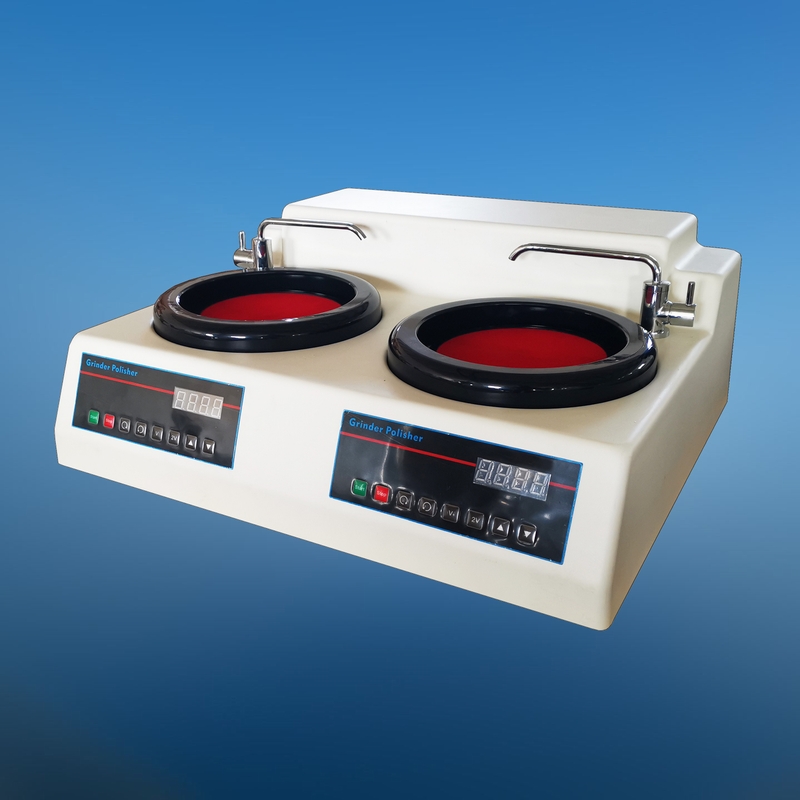

MODEL
MP 2DE
METALLOGRAPHIC
SPECIMEN GRINDING & POLISHING MACHINE
Main features
-
This model is
the economical & practical instrument designed for metallographic specimen
preparing. It can meet the demands of specimen preparing from customers very
well.
-
This model is
designed and manufactured as per international advanced specimen preparing
technology.
-
Equipped with
beautiful appearance machine shell and stainless steel parts which never
rust.
-
Equipped with
double motors & double working discs which feature
independent controlling. The working disc can be changed and replaced
swiftly.
-
CCW and CW rotating direction
control
-
There are two
optional types for MP 2DE: 200mm or 250mm working disc.
-
There are two
working conditions for this model: the stepless speed changing status or
two-level constant speed status. The working condition can be switched from
one to another easily. Also the rotating direction of working disc can be
chosen at will.
Technical specifications
Diameter of working
disc: 200mm / 250mm
Rotating speed of
working disc: 50-600
rpm (stepless speed
changing),
and 150
/
300
rpm
(two-level constant speed)
Motor power: 550W *
2
Power supply:
Single
phase, 220V,
50Hz
Dimensions: 70 x 60 x 28 cm
Net weight: 57 Kg
|
