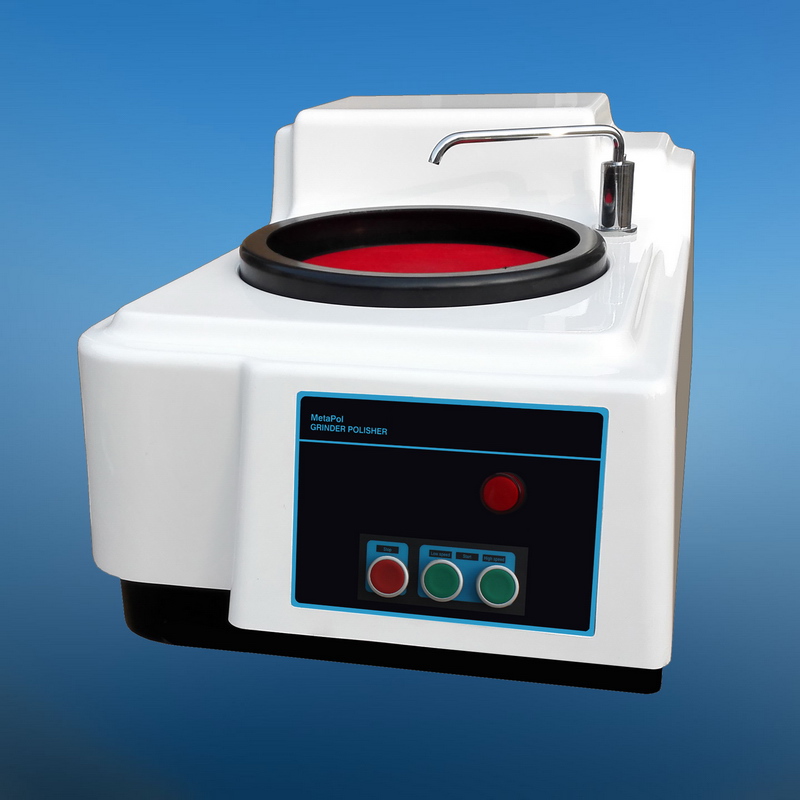

MODEL METAPOL 160 DUAL-SPEED

METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE

       Model METAPOL 160 Dual-speed Metallographic specimen grinding and polishing machine is equipped with single disc and features two level constant speeds for grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. It is the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Features

• Two level constant speed of 300 and 600 rpm

• Quick exchanging disc. The working disc can be changed and replaced swiftly.

• There are two optional types for METAPOL 160: 200mm or 250mm working disc.

Technical specifications

Diameter of working disc: 200mm or 250mm

Rotating speed of working disc: Two-level constant speed of 300 / 600 rpm

 (or 150 / 300 rpm customized)

Power supply: Three phases, 380V, 50Hz
Motor power: 370W

Dimensions: 730 x 450 x 370 mm

Net weight: 35 Kg
