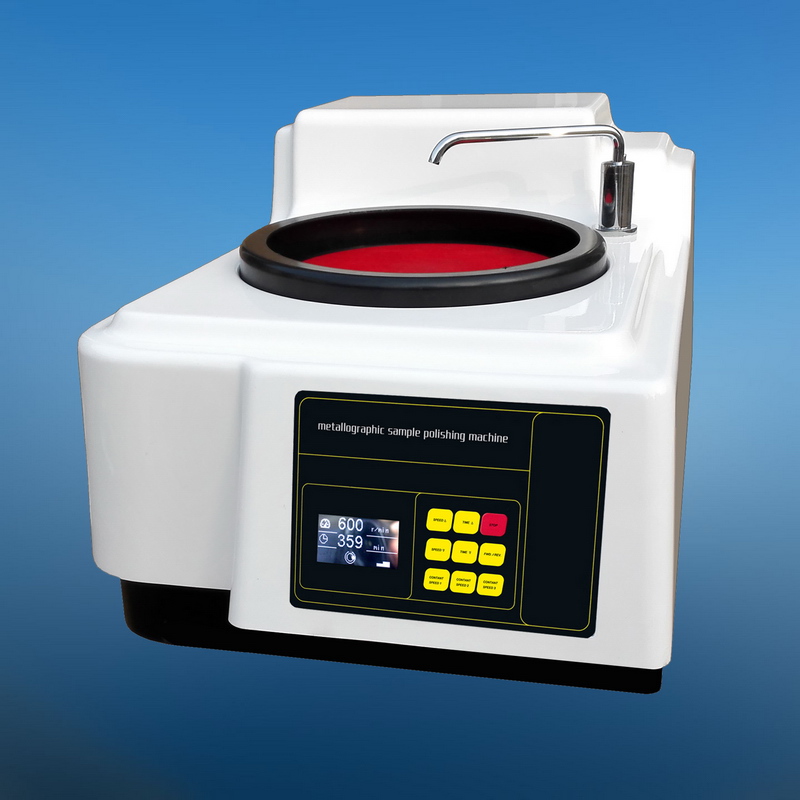

MODEL METAPOL 1000

METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE

         Model METAPOL 1000 Metallographic specimen grinding and polishing machine is equipped with single disc and features stepless speed changing and three-level constant speed for grinding and polishing. The working time can be preset and the rotating direction can be controlled. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. It is the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Features

• Stepless speed changing of 50-1000 rpm, and three-level constant speed of 300, 600 and 900 rpm

• Working time presetting

• FWD and REV rotating direction control

• Quick exchanging disc. The working disc can be changed and replaced swiftly.

Technical specifications

Diameter of working disc: 250mm

Rotating speed of working disc: stepless speed changing 50-1000 rpm, and three-level

constant speeds of 300 / 600 / 900 rpm

Working time presetting: 5-360 minutes

Power supply: Single phase, 220V, 50Hz
Motor power: 550W

Dimensions: 730 x 450 x 370 mm

Net weight: 35 Kg
