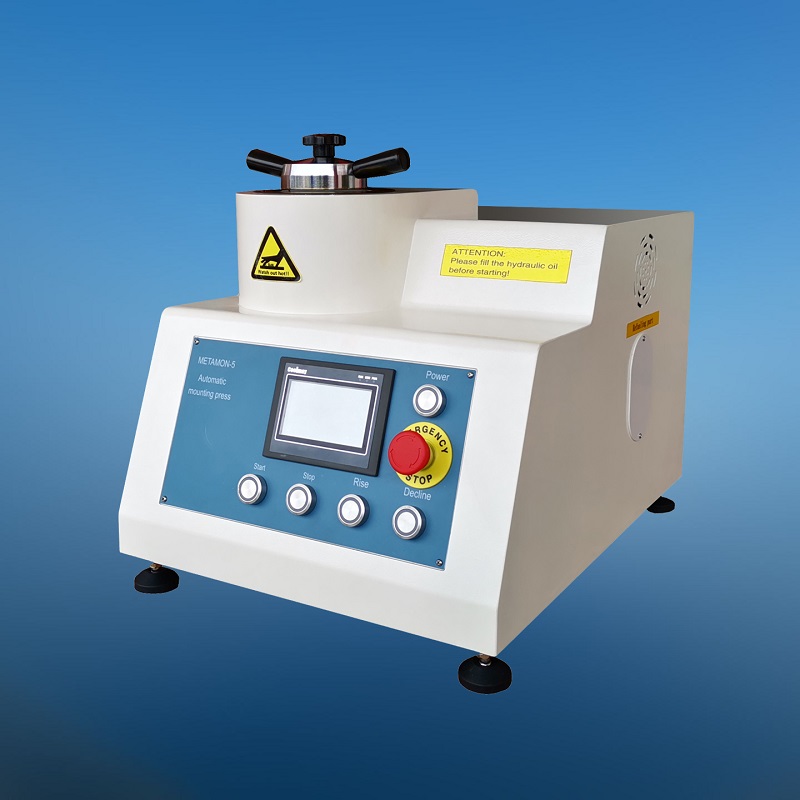

MODEL METAMON-5

AUTOMATIC METALLOGRAPHIC SPECIMEN MOUNTING PRESS



      Model METAMON-5 automatic metallographic specimen mounting press is a kind of full automatic mounting press, equipped with in-out water cooling system. It is suitable for the hot mounting (thermo-hardening & thermoplastic) for all kinds of materials. After the parameters such as heating temperature, heat preserving time etc. are set up, put the specimen and mounting material into the machine, close the cover and press the start button, then the machine will finish the job automatically.  It is not necessary for the operator to be on duty. According to different requirements of the material, there are four kinds of moulds that can be chosen to meet the demands at will. Also it is available to prepare two pieces of specimens at the same time, the capacity is doubled.



Features

  • Touch screen operation for parameter setup

  • Cooling method: water cooling

  • Four kinds of moulds of Ø25mm, Ø30mm, Ø40mm, Ø50mm

  • Preparing 2 samples at the same time



Technical specifications



Mould diameter: Ø25mm, Ø30mm, Ø40mm, Ø50mm

Max. power consumption: 1600W

Setting range of system pressure intensity: 0-2MPa (corresponding preparing pressure intensity: 0-72MPa)

Temperature setting range: 0-180 ºC

Heat preserving time: 0-99m99s

Power supply: single phase, 220V, 50Hz

Net weight: 82KG
