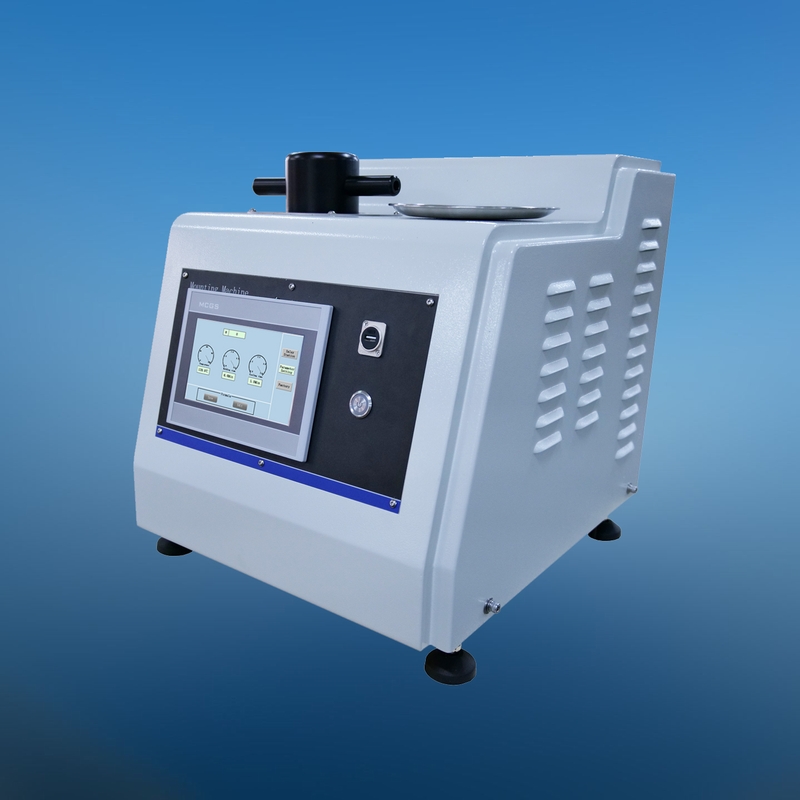

MODEL METAMON-2
AUTOMATIC METALLOGRAPHIC SPECIMEN
MOUNTING PRESS
METAMON-2 is
a new touch screen type automatic
metallographic specimen
mounting press,
all
working
procedures can
be done
automatically.
After the parameters such as heating temperature, heat preserving time and
applied force etc. are set up, put the specimen and mounting material into the
machine, close the cover and press the start button, then the machine will
finish the job automatically. It is not necessary for the operator to be on
duty.
It is the ideal specimen preparing instrument for using in
factories, scientific research institutes and laboratories of colleges.
Features
-
According to different
requirements of the material, there are four kinds of moulds (Ø25mm,
Ø30mm, Ø40mm, Ø50mm)
that can be
chosen to meet the demands at will.
-
Human-machine interface and
PLC control, the system is stable and reliable.
-
According to different
requirements of the material, there are three kinds of moulds (Ø22mm, Ø30mm,
Ø45mm) that can be chosen to meet the demands at will.
-
Adopt motor closed-loop
control to apply pressure to the inlay material, ensuring stable and
reliable pressure with low noise.
-
High quality heating/cooling
system, optimized heat transfer and cooling, achieving rapid circulation.
The preheating function maintains a constant standby temperature of the
device, reduces heating time, and shortens sample preparation time.
-

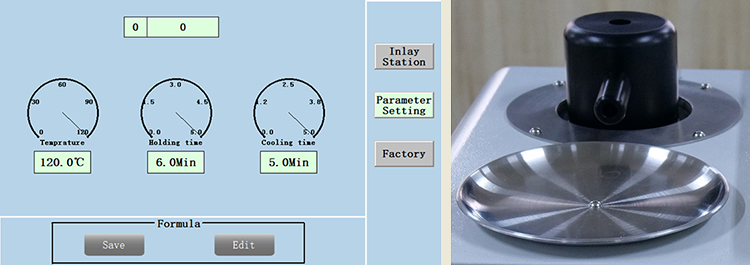

The 7” large touch screen
displays the operation interface, with simple operation and convenient and
intuitive parameter settings.
-
Built in storage of 99 sets
of inlay processes (saving parameters such as inlay materials), one of which
can be called at any time to meet specific requirements.
-
One click start to
automatically complete the sample preparation process.
-
Equipped with sample
placement tray.
-
Equipped with USB interface,
the mounting process parameters can be imported and exported through USB
flash disk.
Main Technical Specifications
Mould
diameter: Ø30mm (optional Ø22mm, Ø45mm）
Mounting program: Programmable mounting process database, which can store 99
groups of mounting processes
Program input
/ output: USB flash disk
Mounting
temperature range: 0 ~ 200 ℃, adjustable
Mounting time
range: 0~30 minutes
Pressure
applying mode: Automatic (electric motor loading)
Cooling
mode: Automatic water cooling system with solenoid valve control (separate water
chiller is optional)
Operation and
display: 7-inch touch screen
Heater: 560W
Maximum
power: 1000W
Power
supply: AC 220V, 50Hz, single phase
Mould cavity
height: 125mm, effective height 60mm
Dimensions (L*W*H): 530 x 430 x 410mm
Weight: 66Kg
Standard accessories
|
Mounting press (HM1 black) |
1 bottle (500 g) |
Throat hoop (13-19) |
1 |
|
Inlet
pipe |
1 |
Teflon tape |
Volume 1 |
|
Outlet pipe |
1 |
Spoon |
1 |
|
Funnel 1.5 cm |
1 |
|
|
|
Product specification |
1 |
Product certificate |
1 |
Optional accessories:
|
HM1 |
suitable for ordinary
sample making
Material: phenolic
resin, Color: black, red, green
Packing: 500 g/kg / 2
and 4 kg / 18 kg |
|
HM2 |
suitable for conducting
samples, such as electron microscope, electropolishing
Material: phenolic
resin, Color: Black
Packing: 500 g/kg / 2
and 4 kg / 18 kg |
|
HM3 |
suitable for samples
with high edge requirements: very low shrinkage, tight sample bonding,
high hardness, good wear resistance
Material: phenolic
resin, Color: Black
Packing: 500 g/kg / 2
and 4 kg / 18 kg |
|
HM4 |
suitable for powder
metallurgy and other interstitial samples
Material: phenolic resin
Color: Red
Packing: 500 g/kg / 2
and 4 kg / 18 kg |
|
HM5 |
suitable for samples
with requirements on location, size, depth of layer, etc
Material: Acrylic resin,
Color: Transparent
Packing: 500 g / 3 kg /
10 kg |
|
HM6 |
suitable for ordinary
sample making
Material: urea-formaldehyde resin, Color: White
Packing: 500 g / 4 kg /
15 kg |
|
HM7 |
suitable for samples
that need to be recovered and the location, size and depth of layer are
required
Material: Acrylic resin,
Color: Soluble and transparent
Packing: 500 g / 3 kg /
10 kg |
|
CLIP3 |
The sample holder is
suitable for vertical elevation of the sample to observe the profile
Material: stainless
steel
Packing: 100 PCS/box |
|
MMR |
Mold release agent is
suitable for sample mold release
Packaging: 420ml/ bottle |
|
MMR2 |
Mold release agent is
suitable for sample mold release
Packaging: 420ml/ bottle
200 ml/bottle packaging |
|
|
